Matt's GearspaceHardware & software guide

Gravity

GKSX2 Double Braced X-Form Stand

Current£35

Gravity's double-braced steel X-stand: 65 kg capacity, height up to 90 cm, with the interchangeable coloured rings the brand is known for.

Manufacturer page ↗

Specifications

General

Manufacturer: Gravity
Status: Current
Price: £35

Design

Stand type: X-frame
Bracing: Double
Tiers: 1
Height adjustment: Locking lever

Size & capacity

Max load: 65 kg
Min height: 100 mm
Max height: 900 mm
Support width (mm): 735–900
Support depth: 400 mm

Build

Folds for transport: Yes
Material: Steel
Features: Interchangeable rubber rings, Second tier available

Size & weight

Colours: Black, White
Weight: 4.45 kg

Accessories

Add-ons made for this keyboard stand.

Gravity
KSX 2 T Tilting Second Tier
Current
Type
Second tier
Fits
Gravity KSX 1 / KSX 2 and KS TS / AKS 01 B stands
—
Gravity
KS RD 1 Rapid Desk
Current
Type
Table top
Fits
Gravity KSX 1 / KSX 2 X-stands
—
Gravity
KS LTS 2 T Utility Shelf
Current
Type
Shelf / laptop tray
Fits
Gravity KSX 1 / KSX 2 second-tier add-ons
£35
Gravity
BG KS 1 B Protective Bag
Current
Type
Bag
Fits
Gravity KSX 1 / KSX 2 X-stands
£18
Gravity

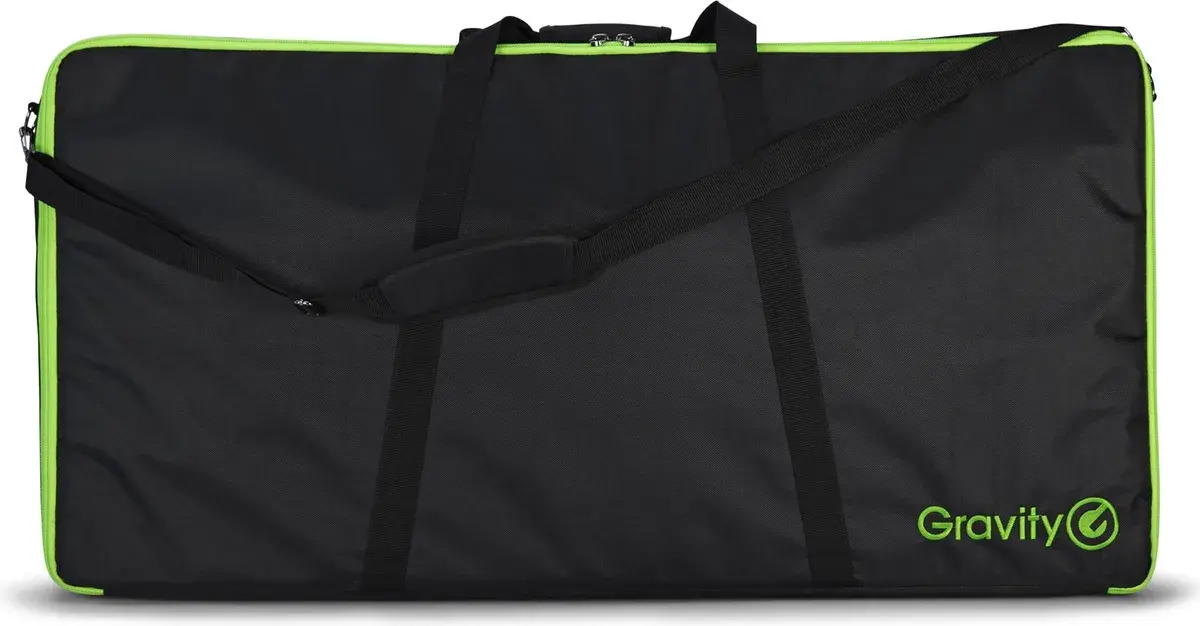

BG X2 RD B Transport Bag
Current
Type
Bag
Fits
Gravity KSX 2 / KSX 2 RD with Rapid Desk
£74

More from Gravity

Gravity
GKSX2RD X-Form Double Stand + Rapid Desk
Current
Stand type
X-frame
Tiers
2
Max load
60 kg
Folds for transport
Yes
£68
Gravity
GKSX1 Single Braced X-Form Stand
Current
Stand type
X-frame
Tiers
1
Max load
55 kg
Folds for transport
Yes
£35
Gravity
KS MKS 01 B Multi Keyboard Stand
Current
Stand type
A-frame rack
Tiers
—
Max load
25 kg
Folds for transport
Yes
£224
