K&M

18810 Keyboard Table Stand

Current£136

Rigid four-leg steel table stand: 80 kg capacity, spring-loaded height clamps with an engraved scale (60–102 cm), arms adjustable from 18 to 79 cm wide. Stackers add second and third tiers.

Manufacturer page ↗

Specifications

General

Manufacturer: K&M
Status: Current
Price: £136

Design

Stand type: Table
Tiers: 1
Height adjustment: Spring-loaded clamps with scale

Size & capacity

Max load: 80 kg
Min height: 600 mm
Max height: 1020 mm
Support width (mm): 180–790
Support depth: 345 mm

Build

Folds for transport: Yes
Material: Steel
Features: Levelling end caps, 4 cable clamps included, Second/third tier stackers

Size & weight

Colours: Black, White, Ruby red
Dimensions (W × D × H): 970 × 575 × 1020 mm
Weight: 9.2 kg

Accessories

Add-ons made for this keyboard stand.

K&M

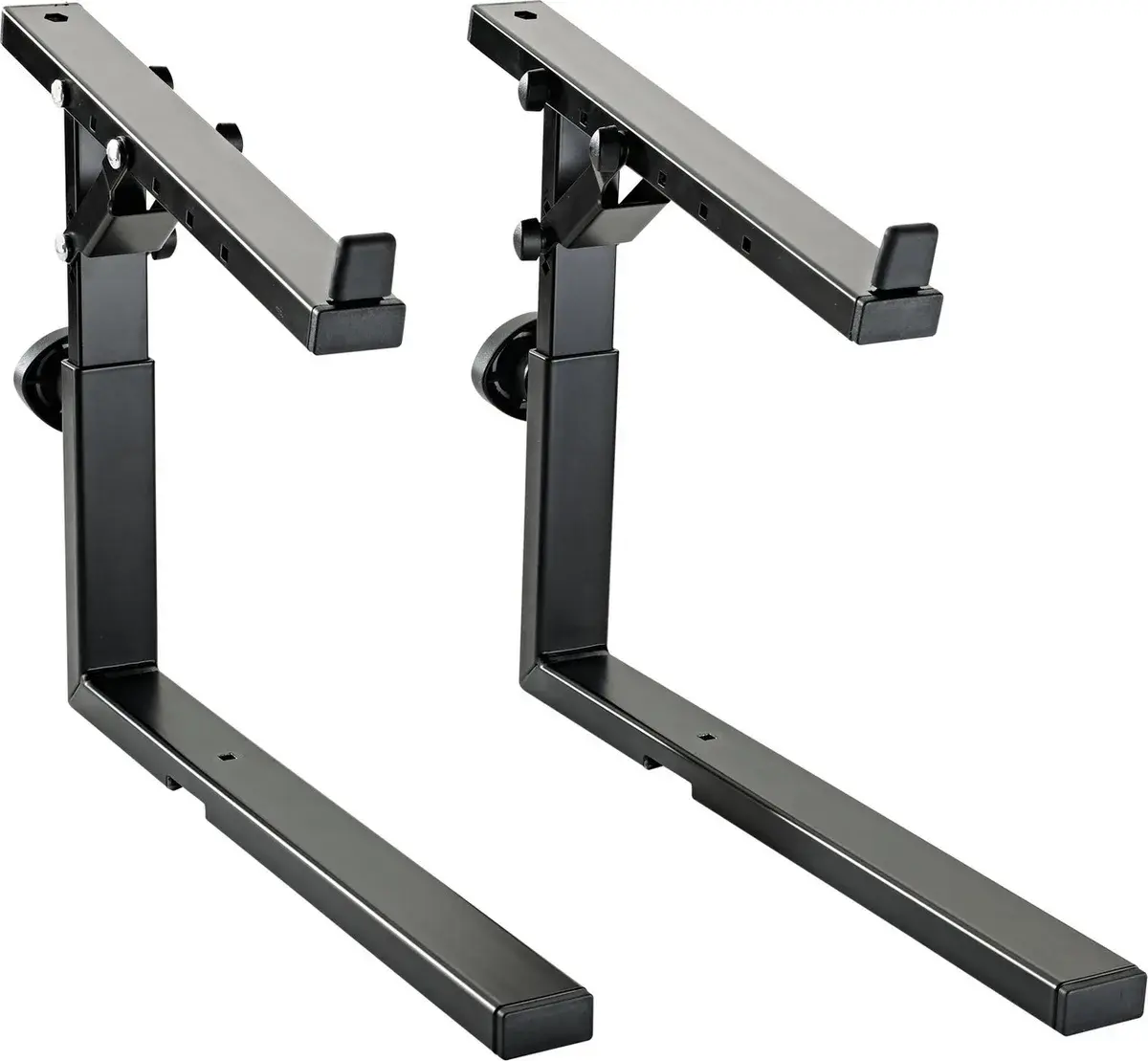

18811 Second-Tier Arms
Current
Type
Second tier
Fits
K&M 18810 / 18820 table stands
£96
K&M

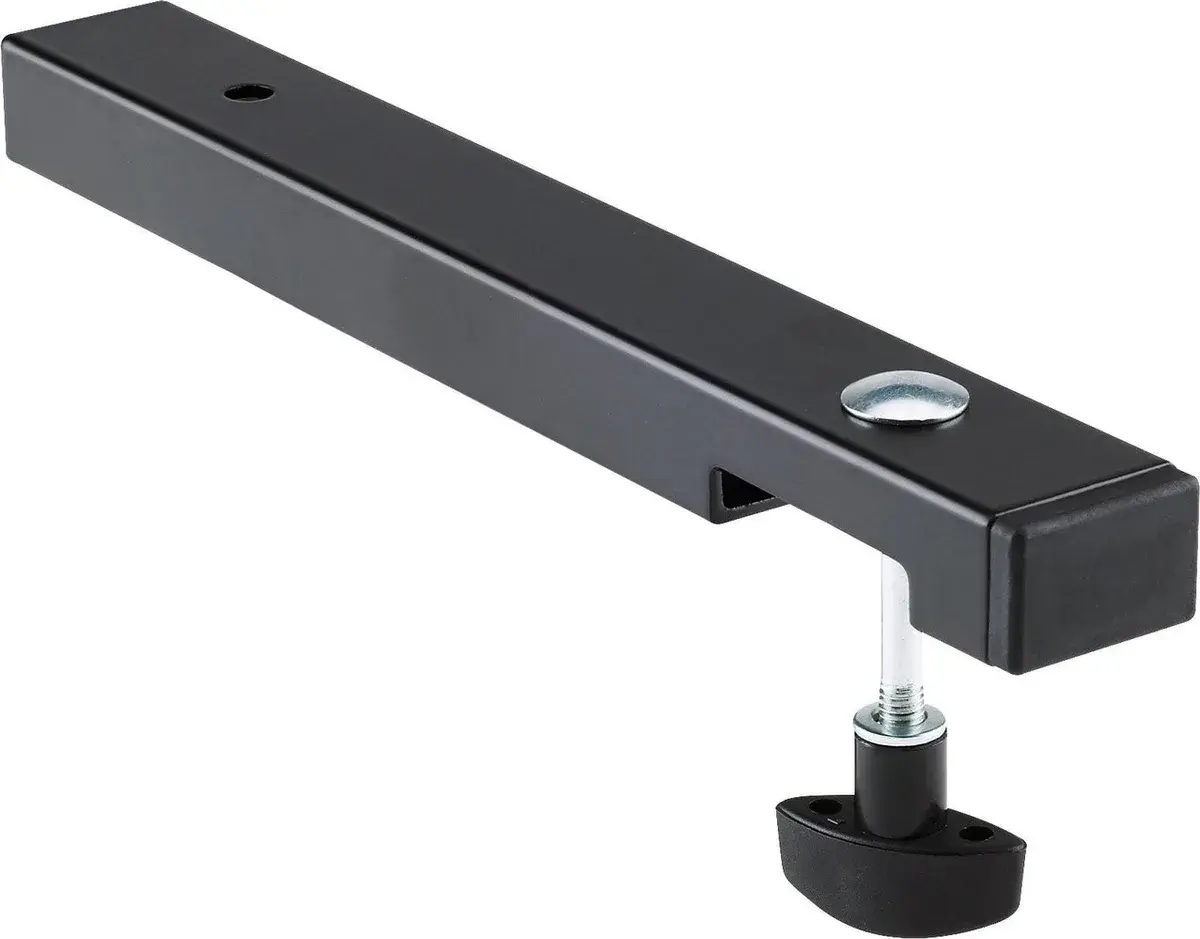

18814 Universal Holder Adapter
Current
Type
Clamp / holder
Fits
K&M 18810 / 18820 table stands
£16
K&M

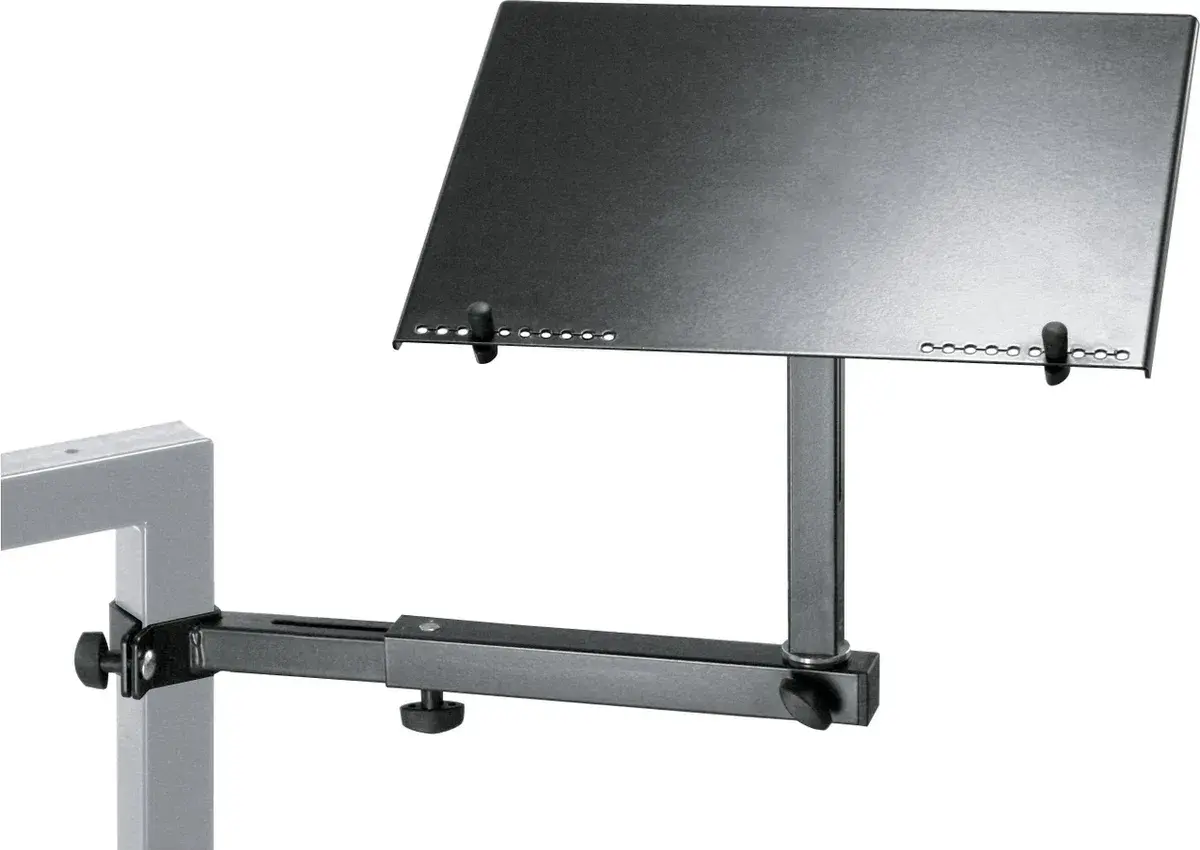

18815 Laptop Holder
Current
Type
Tablet / laptop holder
Fits
K&M 18810 / 18820 table stands
£115

More from K&M

K&M

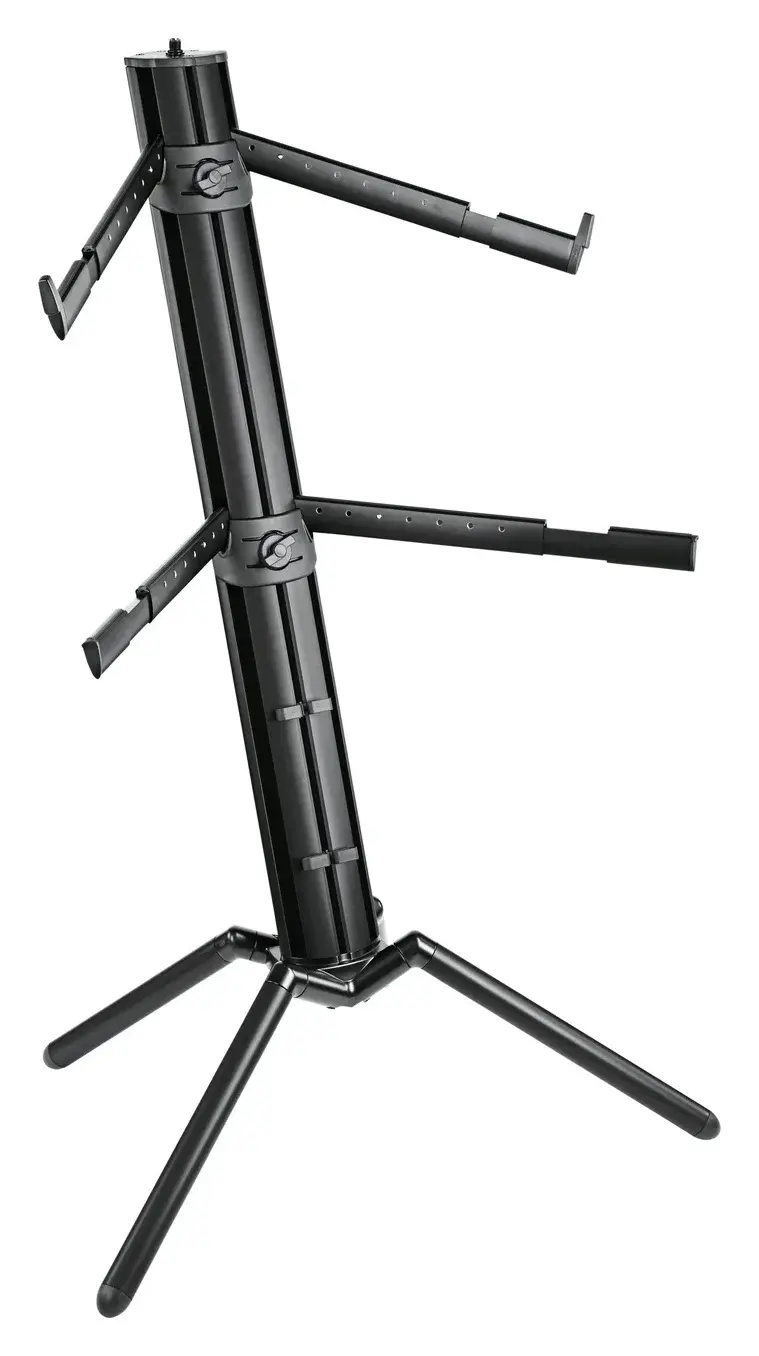

18860 Spider Pro 2-Tier Stand
Current
Stand type
Column
Tiers
2
Max load
105 kg
Folds for transport
Yes
£320
K&M

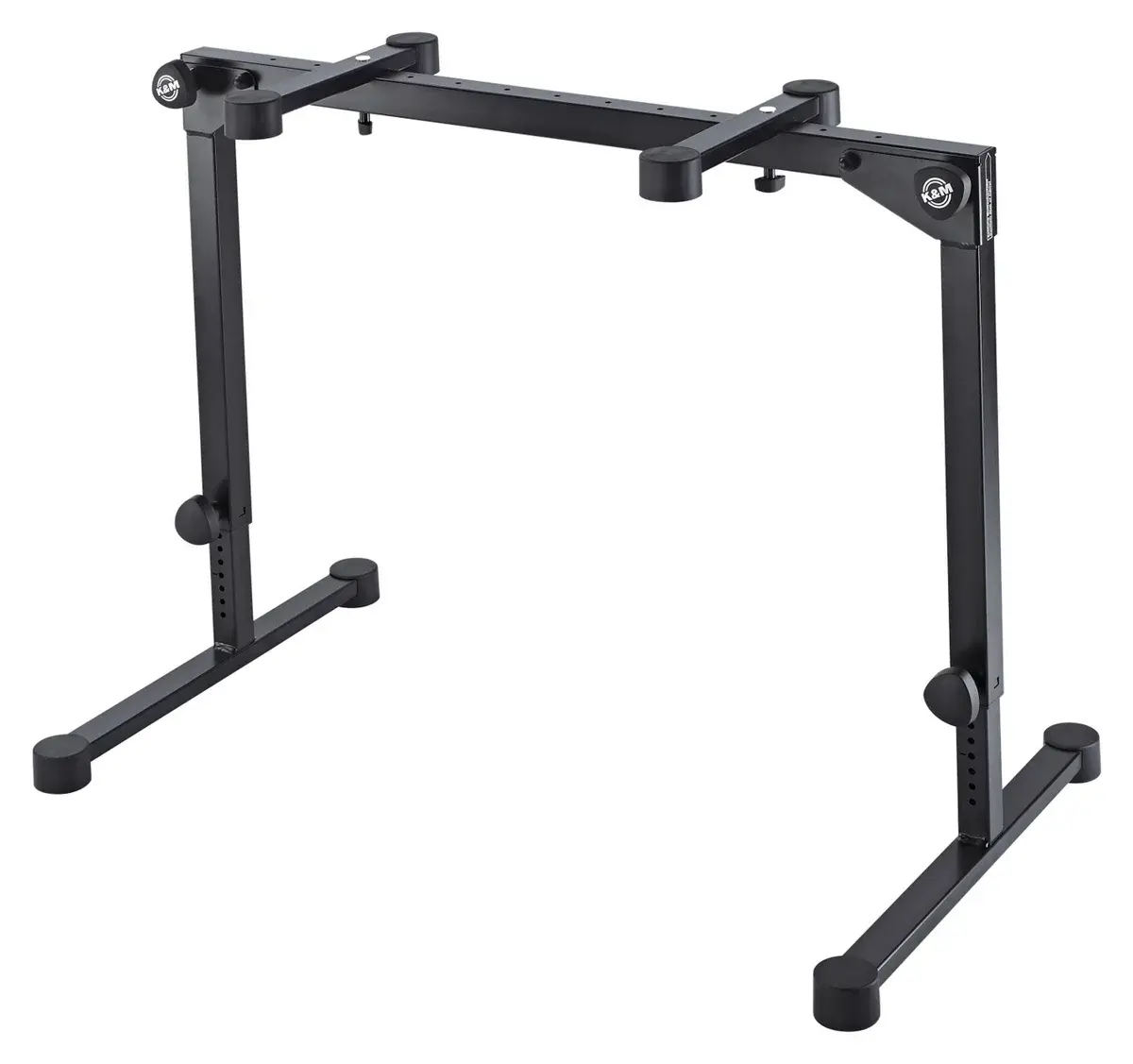

18820 Foldable Keyboard Table Stand
Current
Stand type
Table
Tiers
1
Max load
80 kg
Folds for transport
Yes
£173
K&M

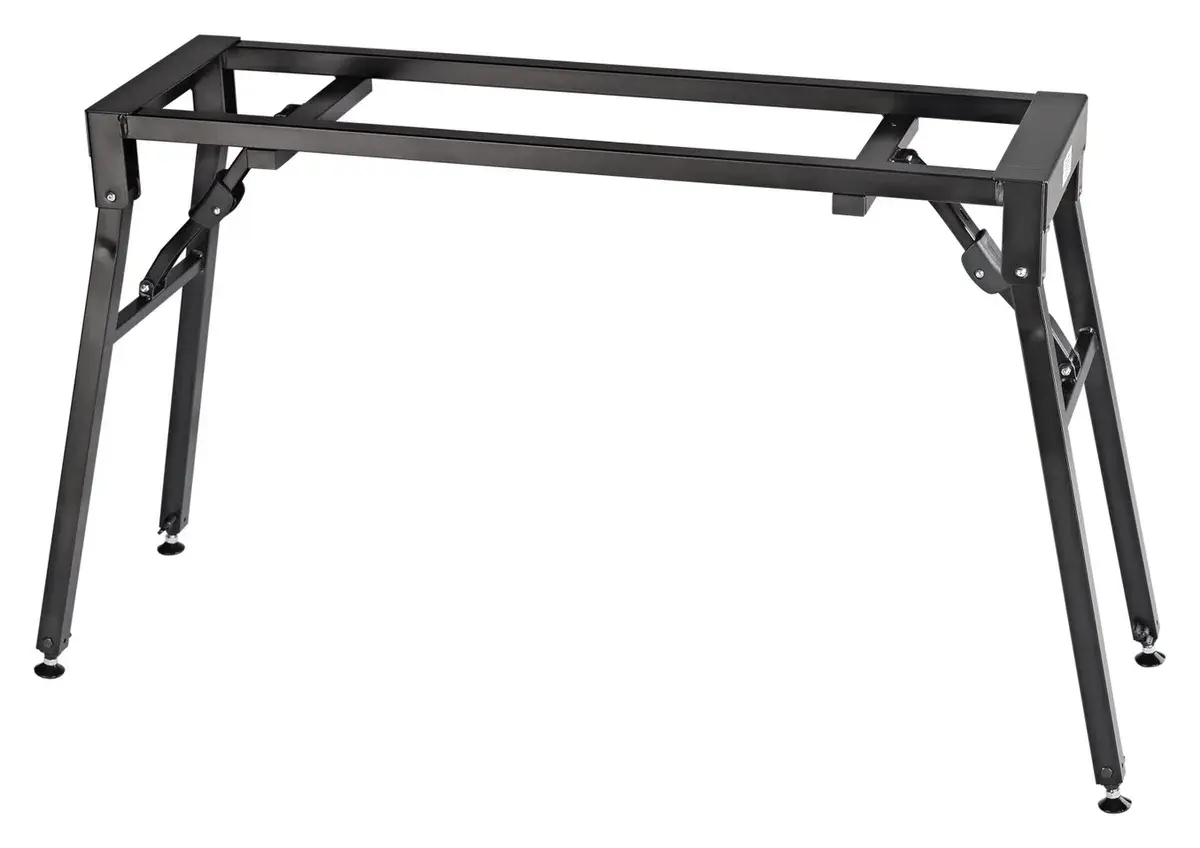

18953 Folding Table-Style Stage Piano Stand
Current
Stand type
Table
Tiers
1
Max load
80 kg
Folds for transport
Yes
£168
