Liquid Stands

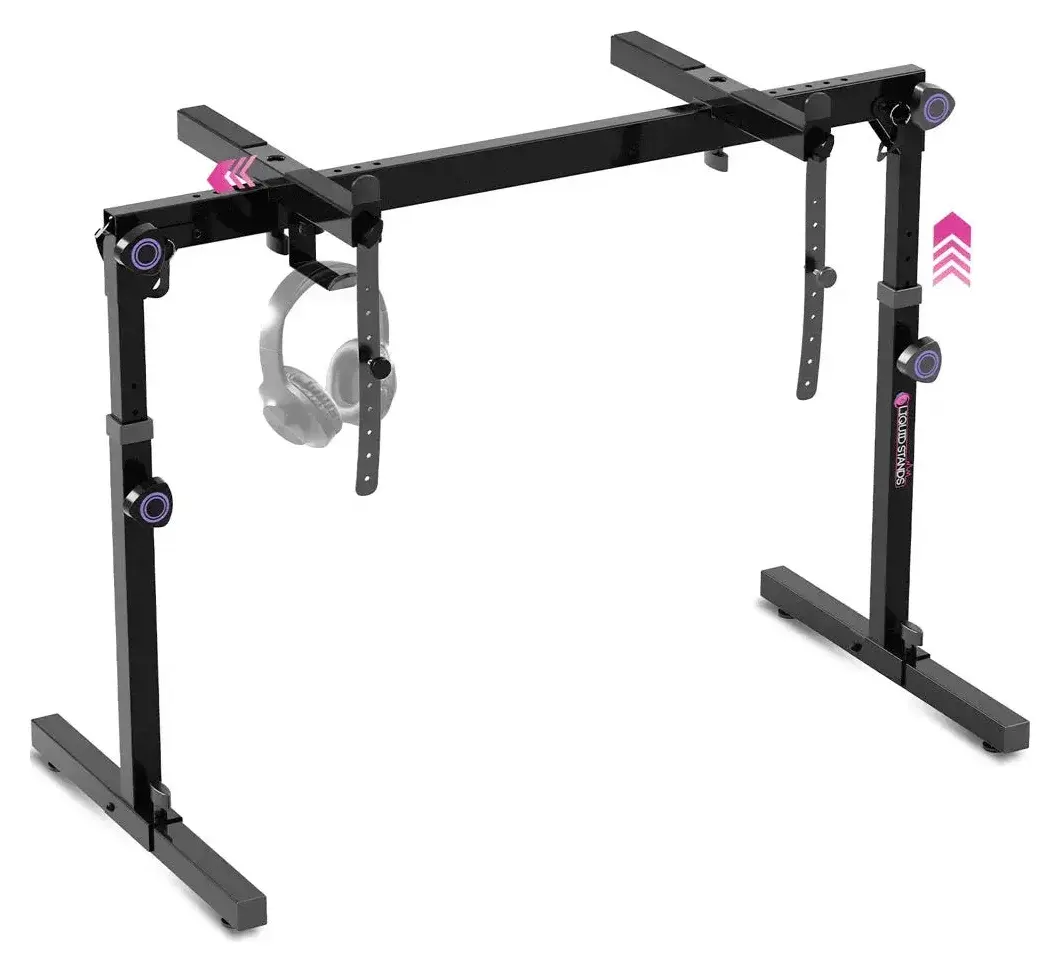

Table Style Keyboard Stand (MS1156)

CurrentReleased 2025

Folding four-leg table stand rated 82 kg, 64–94 cm high and 42–85 cm wide; takes Liquid's second-tier arms, tabletop and extender.

Manufacturer page ↗

Specifications

General

Manufacturer: Liquid Stands
Status: Current
Released: 2025

Design

Stand type: Table
Tiers: 1
Height adjustment: Locking pins

Size & capacity

Max load: 82 kg
Min height: 635 mm
Max height: 940 mm
Support width (mm): 419–851

Build

Folds for transport: Yes
Material: Steel
Features: Second tier available, 10-year warranty

Size & weight

Colours: Black
Weight: 8.28 kg

Accessories

Add-ons made for this keyboard stand.

Liquid Stands

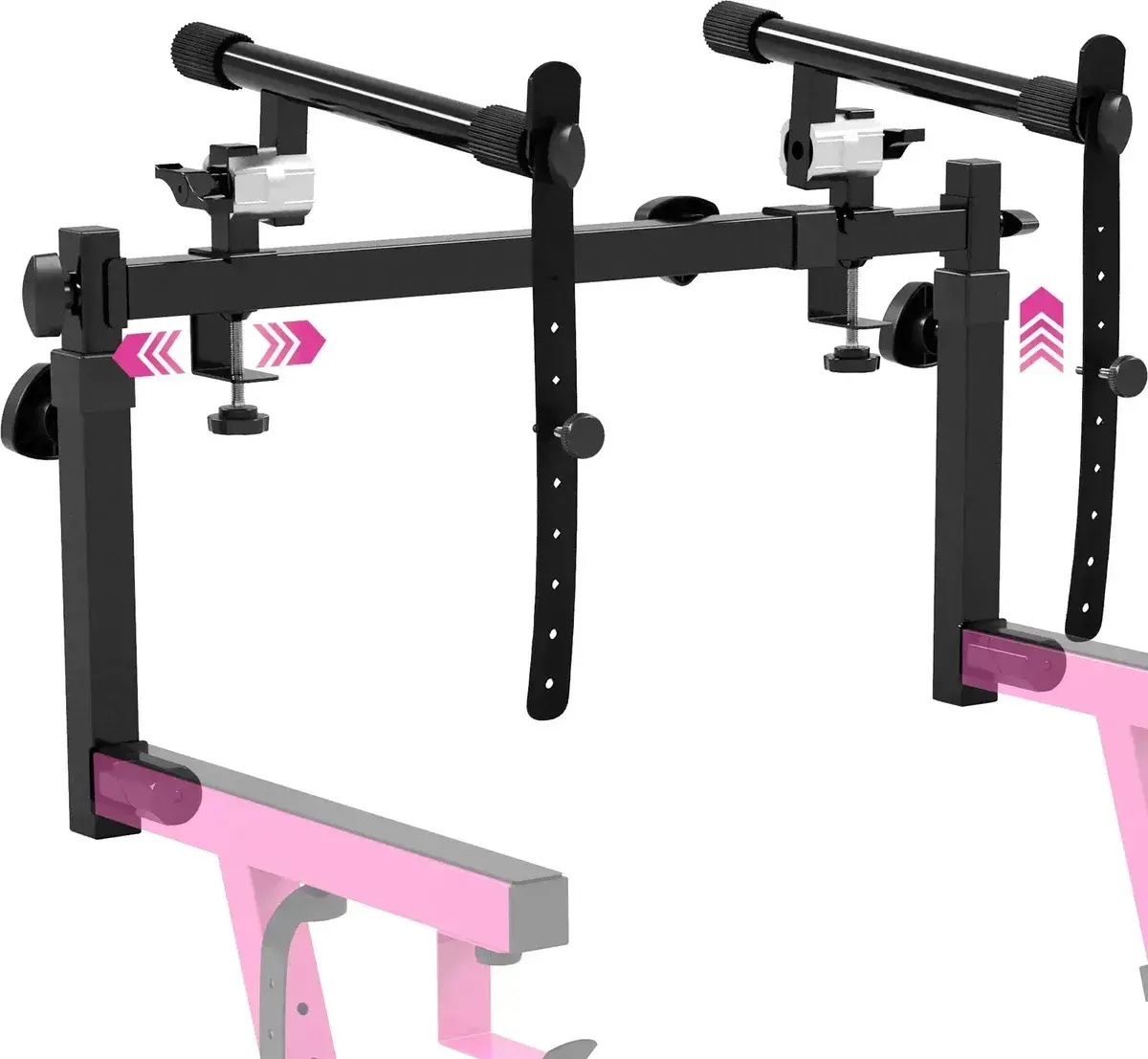

Adjustable 2nd Tier Attachment (MS1087)
Current
Type
Second tier
Fits
Liquid Stands Z, table and workstation stands
—
Liquid Stands

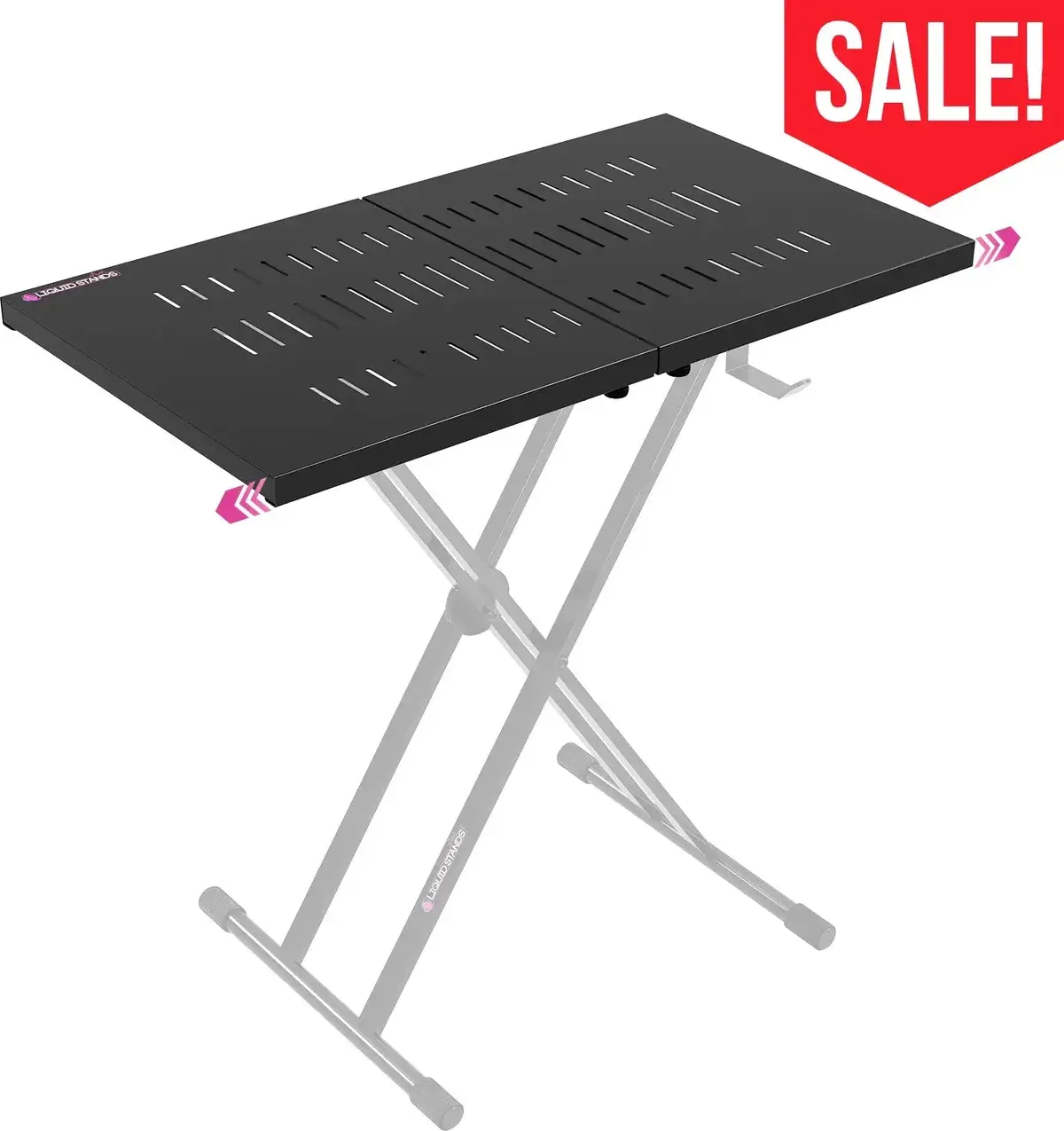

Utility Table Top (MS1105)
Current
Type
Table top
Fits
Liquid Stands X and Z stands
—
Liquid Stands

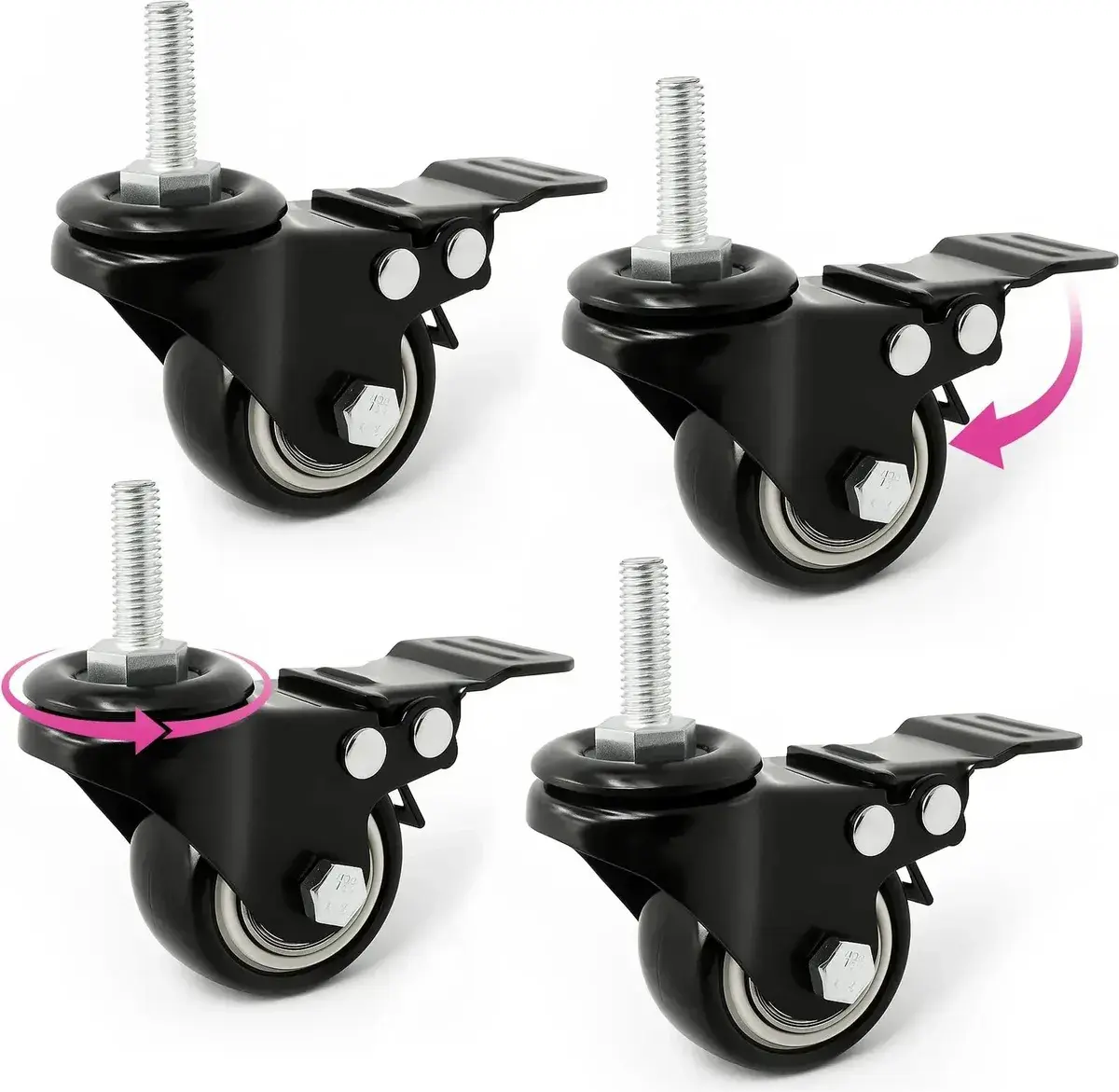

Wheel Set (MS1109)
Current
Type
Wheels
Fits
Liquid Stands Z, table and workstation stands
—
Liquid Stands

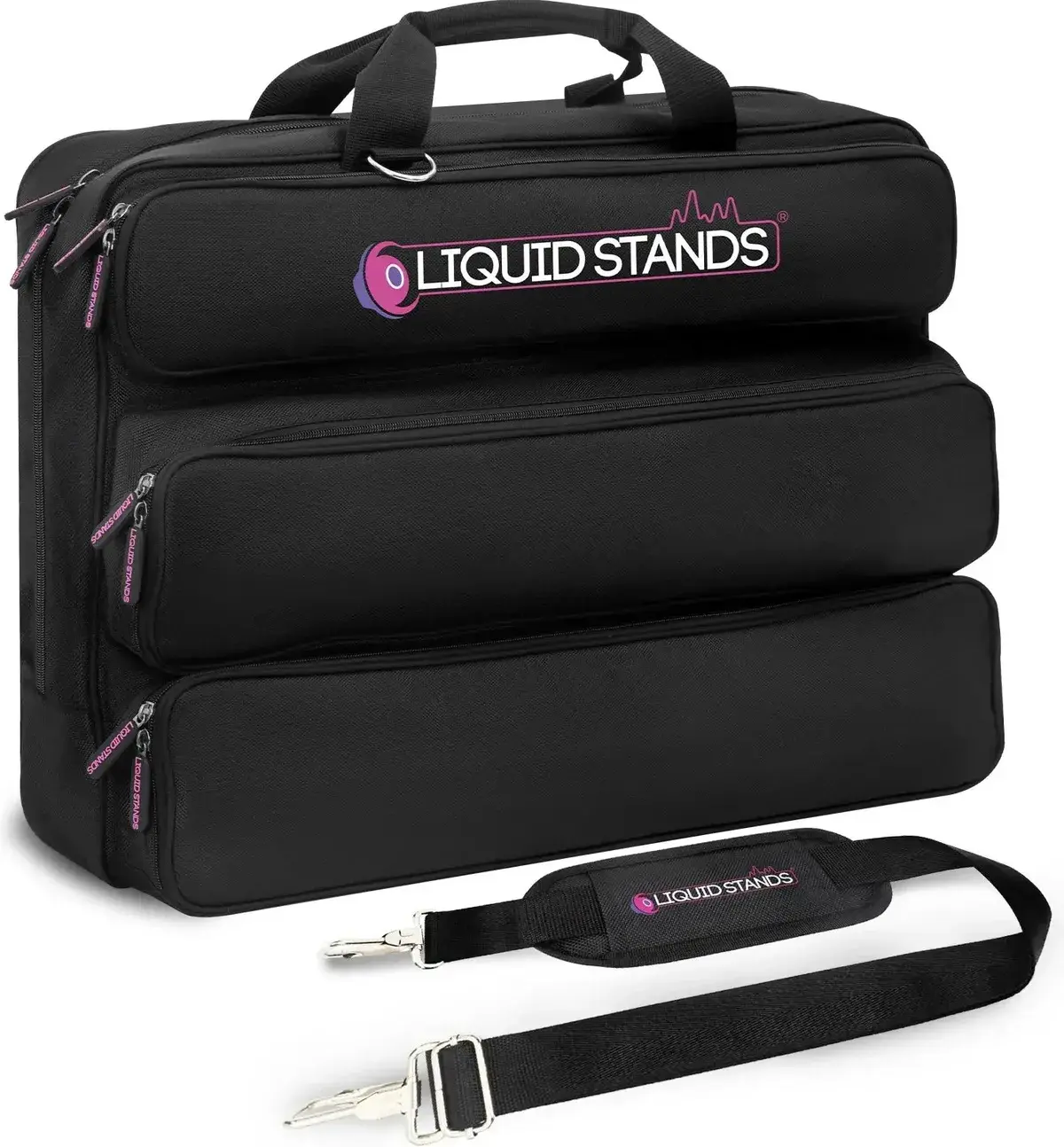

Carry Bag (MS1113)
Current
Type
Bag
Fits
Liquid Stands folding stands
—

More from Liquid Stands

Liquid Stands
Z-Style Keyboard Stand (MS1078)
Current
Stand type
Z-frame
Tiers
1
Max load
113 kg
Folds for transport
No
—
Liquid Stands
Foldable Z-Style Keyboard Stand (MS1151)
Current
Stand type
Z-frame
Tiers
1
Max load
113 kg
Folds for transport
Yes
—2025
Liquid Stands
Foldable Z-Style Piano Stand (MS1114)
Current
Stand type
Z-frame
Tiers
1
Max load
100 kg
Folds for transport
Yes
—2024
