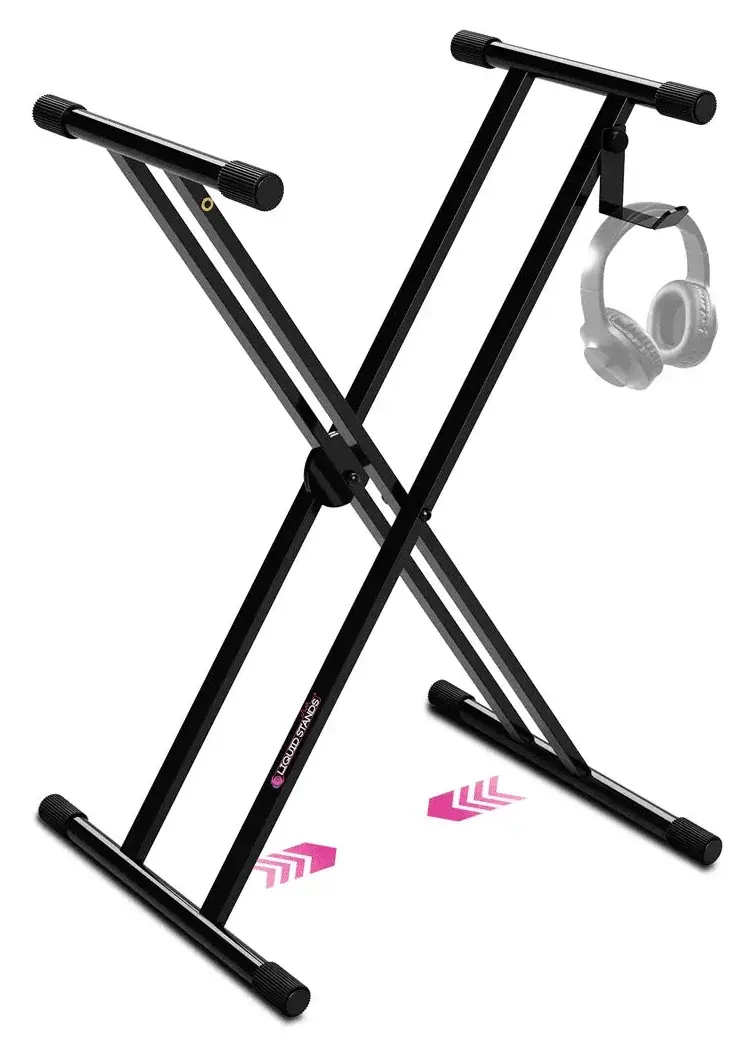

X-Style Keyboard Stand (MS1099)

Name: Liquid Stands X-Style Keyboard Stand (MS1099)
Brand: Liquid Stands
Price: 47.99 USD
Availability: InStock

Current

Single-braced 25 mm steel X-stand with a one-hand pull lever, 69–94 cm high, 73 kg.

Manufacturer page ↗

Specifications

General

Manufacturer: Liquid Stands
Status: Current

Design

Stand type: X-frame
Bracing: Single
Tiers: 1
Height adjustment: Pull lever

Size & capacity

Max load: 73 kg
Min height: 686 mm
Max height: 940 mm

Build

Folds for transport: Yes
Material: Steel
Features: Adjustable feet, 10-year warranty

Size & weight

Colours: Black, White
Weight: 5.26 kg

Accessories

Add-ons made for this keyboard stand.

Liquid Stands
Utility Table Top (MS1105)
Current
Type
Table top
Fits
Liquid Stands X and Z stands
—
Liquid Stands
Carry Bag (MS1113)
Current
Type
Bag
Fits
Liquid Stands folding stands
—

More from Liquid Stands

Liquid Stands
Z-Style Keyboard Stand (MS1078)
Current
Stand type
Z-frame
Tiers
1
Max load
113 kg
Folds for transport
No
—
Liquid Stands
Foldable Z-Style Keyboard Stand (MS1151)
Current
Stand type
Z-frame
Tiers
1
Max load
113 kg
Folds for transport
Yes
—2025
Liquid Stands
Foldable Z-Style Piano Stand (MS1114)
Current
Stand type
Z-frame
Tiers
1
Max load
100 kg
Folds for transport
Yes
—2024
