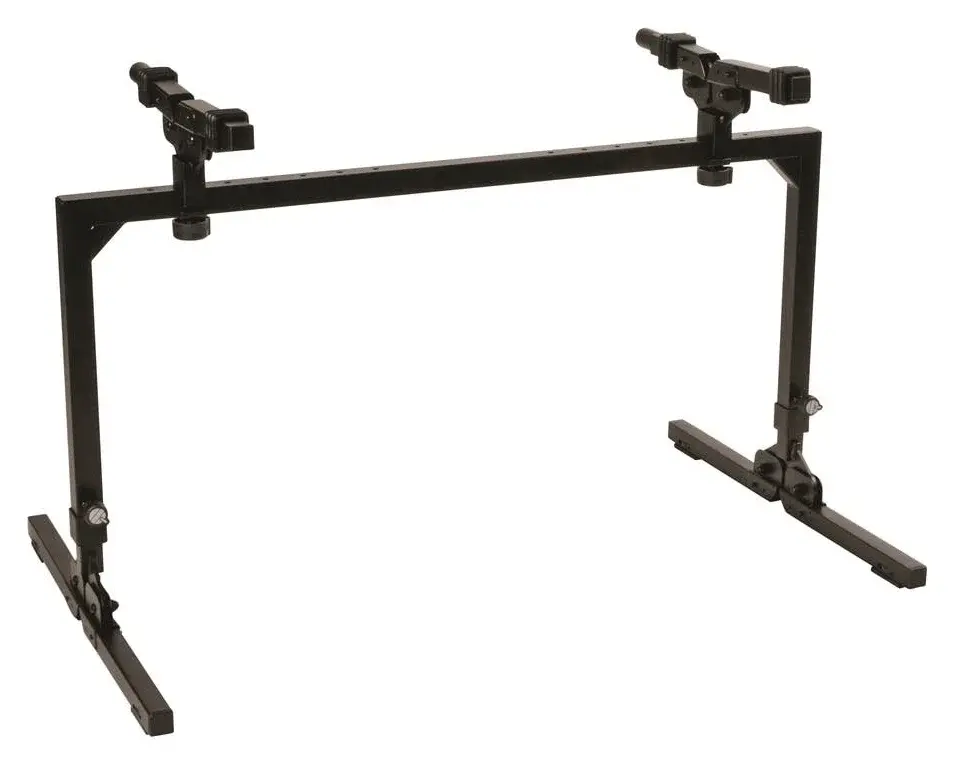

M61 Single-Tier Keyboard Structure

Name: Quiklok M61 Single-Tier Keyboard Structure
Brand: Quiklok
Price: 139 GBP
Availability: InStock

Current£139

Table-style frame with 35 mm square tubing: ten height positions from 70 to 97 cm, seven tier widths from 28 to 88 cm, 90 kg rating.

Where to buy:Andertons ↗

Specifications

General

Manufacturer: Quiklok
Status: Current
Price: £139

Design

Stand type: Table
Tiers: 1
Height adjustment: Pin (10 positions)

Size & capacity

Max load: 90 kg
Min height: 700 mm
Max height: 970 mm
Support width (mm): 280–880
Support depth: 430 mm

Build

Folds for transport: Yes
Material: Steel

Size & weight

Colours: Black
Dimensions (W × D × H): 1080 × 660 × 970 mm
Weight: 9.5 kg
