MD-BT01

Name: Yamaha MD-BT01
Brand: Yamaha
Price: 45 GBP
Availability: InStock

CurrentReleased 2015£45

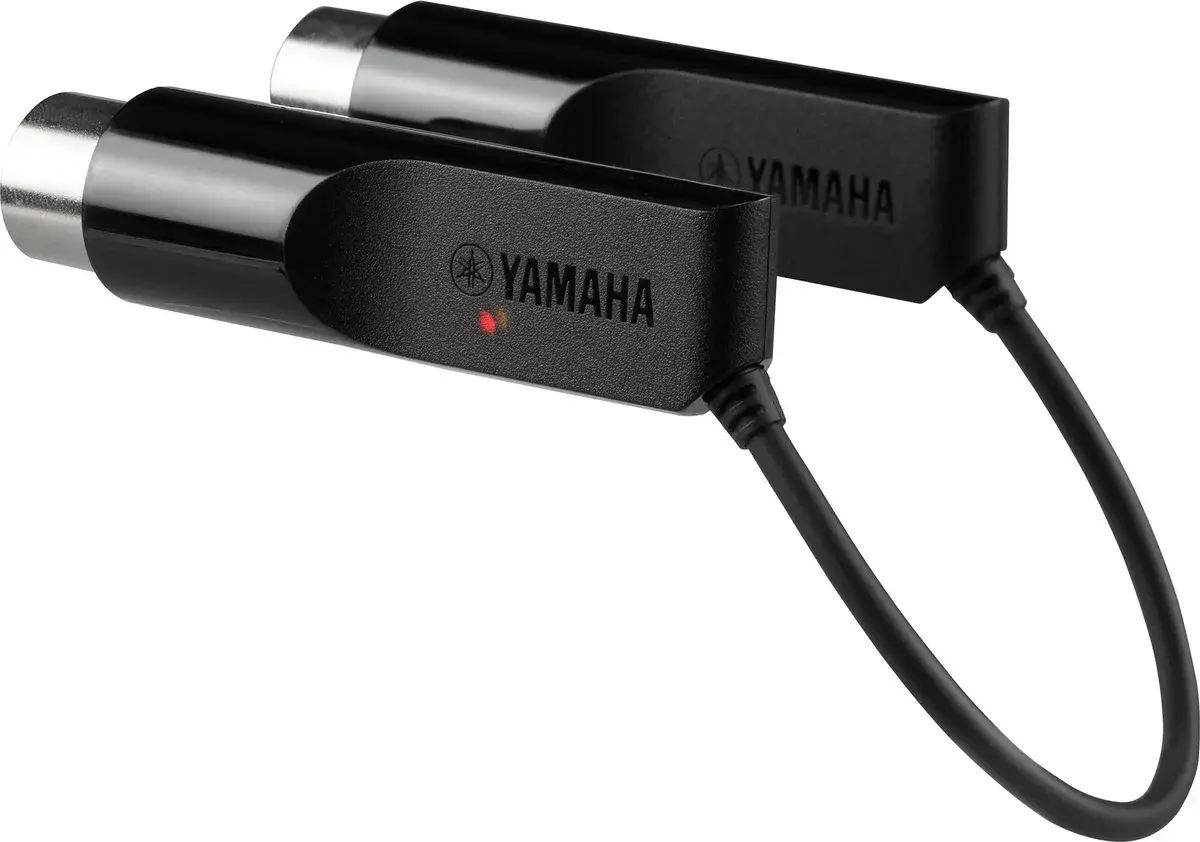

Yamaha's original DIN Bluetooth adaptor, aimed at iOS and Mac: two 5-pin plugs, bus-powered from MIDI out, and rock-solid with Apple's Bluetooth MIDI stack. Cannot pair to another adaptor on its own.

Manufacturer page ↗

Where to buy:Andertons ↗

Specifications

General

Manufacturer: Yamaha
Status: Current
Released: 2015
Price: £45

Type

Type: Bluetooth MIDI (DIN)
Features: Bus-powered, Apple BLE MIDI

Connections

Connectors: DIN in, DIN out
Powered from: MIDI out (bus)

Wireless

Bluetooth: 4.0 LE
Pairs without a computer: No
Range: 10 m

Compatibility

Works with: iOS, macOS, Windows (with WIDI Bud Pro)

Size & weight

Colours: Black
