Alesis

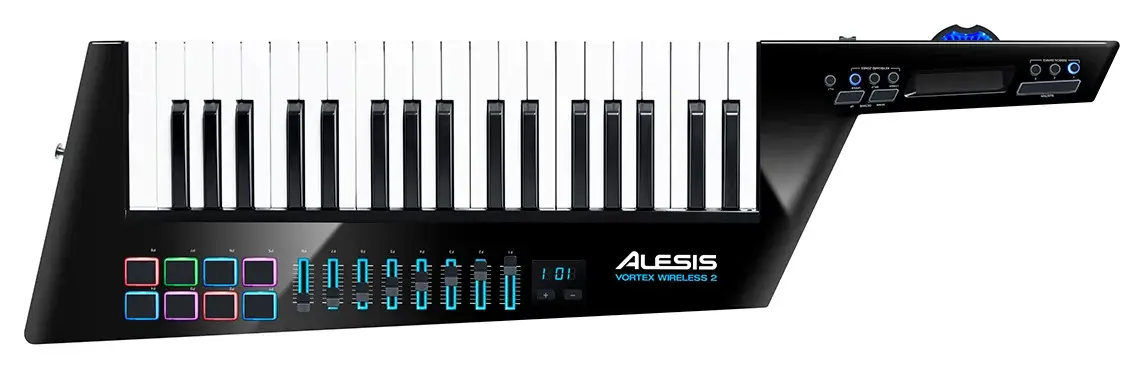

Vortex Wireless 2

CurrentReleased 2018

Keytar controller with 37 aftertouch keys, eight pads, eight faders, a neck touchstrip and a tilt sensor. Runs wirelessly over a 2.4 GHz USB dongle on four AA batteries.

Manufacturer page ↗

Specifications

General

Manufacturer: Alesis
Status: Current
Released: 2018

Keyboard

Keys: 37
Key size: Full
Key action: Synth-action
Aftertouch: Channel
Keybed: Alesis synth-action with aftertouch

Controls

Pads: 8
Faders: 8
Knobs / encoders: 0
Display: LED
Pitch / mod: Wheels

Connectivity

USB: USB-B
MIDI ports: DIN out
CV / Gate out: No
Bluetooth MIDI: No
Pedal inputs: Sustain
USB bus powered: Yes

Features & software

Features: Battery powered, Zones / splits
Bundled software: Ableton Live Lite, AIR Hybrid 3, Loom 2, Vacuum Pro, Xpand!2, TimewARP 2600

Size & weight

Colours: Black
Dimensions (W × D × H): 935 × 310 × 95 mm
Weight: 3.2 kg
