DP-2

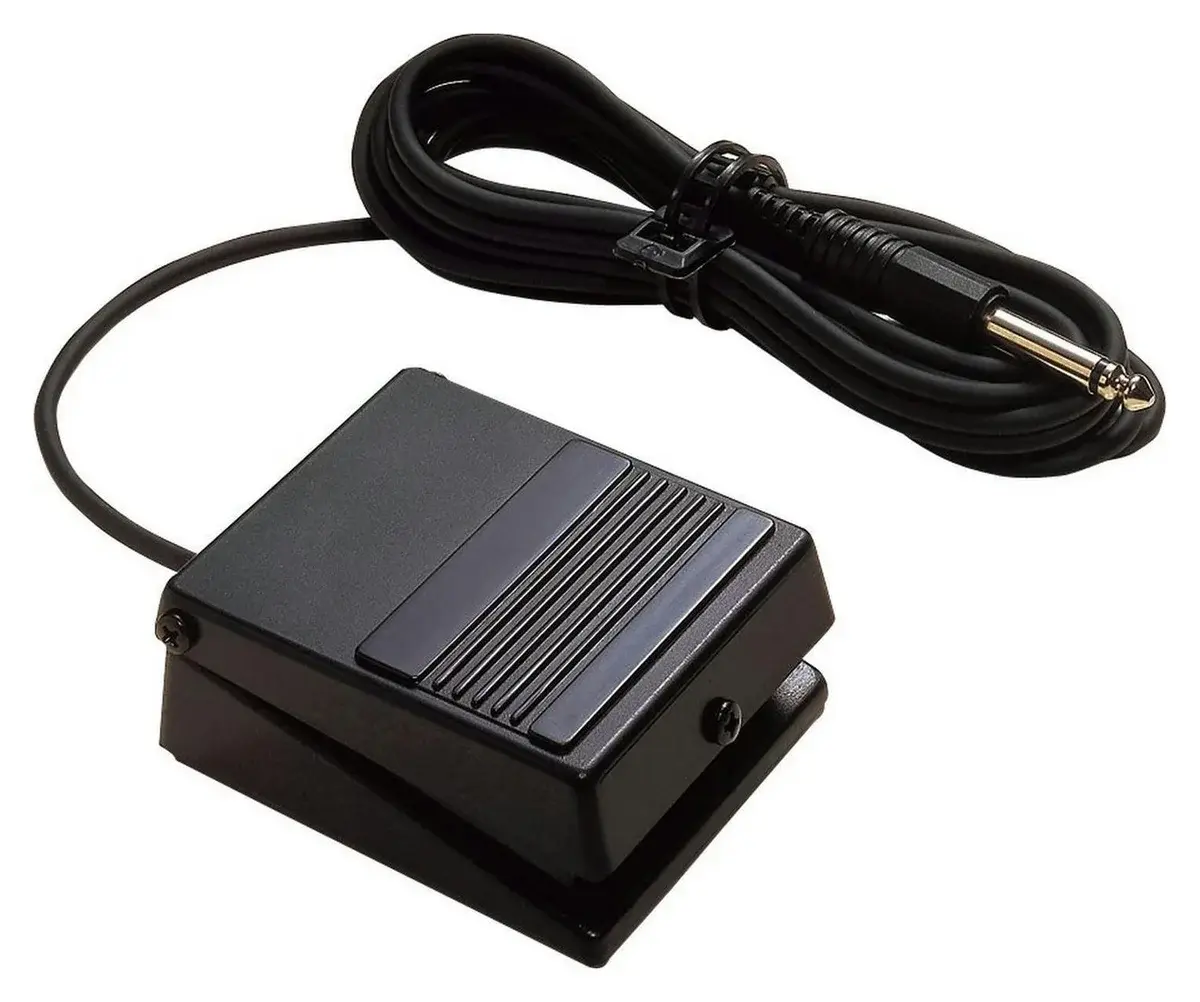

Name: Boss DP-2
Brand: Boss
Price: 17 GBP
Availability: InStock

Current£17

Simple momentary damper footswitch used across the Boss and Roland range for sustain and remote functions.

Manufacturer page ↗

Specifications

General

Manufacturer: Boss
Status: Current
Price: £17

Pedal

Pedal type: Footswitch
Style: Box switch
Pedals in unit: 1

Connection

Connector: 1/4" TS
Polarity switch: No
Range / minimum control: No

Build & features

Housing: Plastic
Designed for: Boss and Roland keyboards, modules, drum machines and effects

Size & weight

Colours: Black
