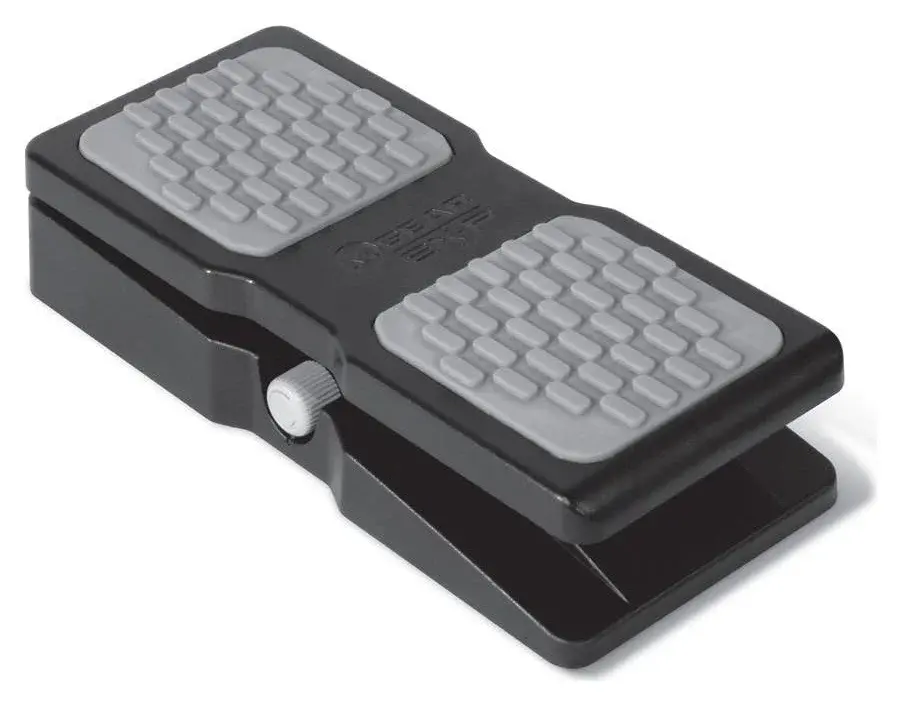

EX-P

Name: M-Audio EX-P
Brand: M-Audio
Price: 11.9 GBP
Availability: InStock

Current£11.9

Universal moulded expression pedal with a polarity switch so it works with M-Audio controllers and most other brands’ expression inputs.

Manufacturer page ↗

Specifications

General

Manufacturer: M-Audio
Status: Current
Price: £11.9

Pedal

Pedal type: Expression
Style: Rocker
Pedals in unit: 1

Connection

Connector: 1/4" TRS
Cable length: 1.8 m
Polarity switch: Yes
Range / minimum control: No

Build & features

Housing: Plastic
Features: Polarity switch
Designed for: M-Audio controllers; most expression sockets

Size & weight

Colours: Black
