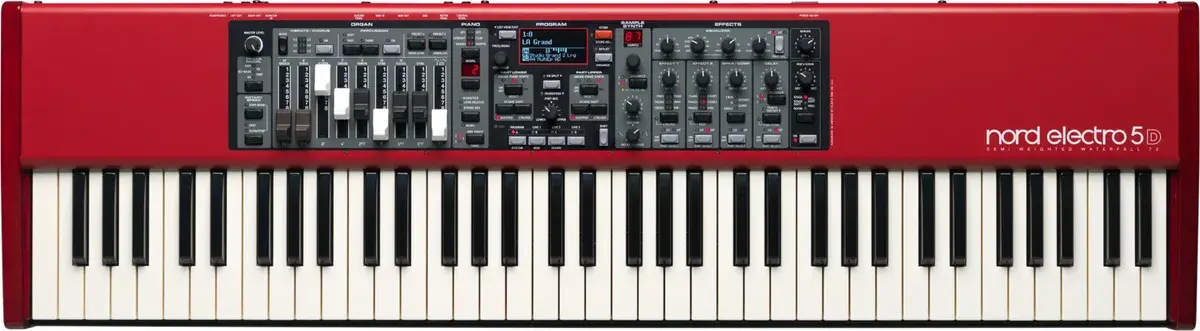

Nord Electro 5D 73
Discontinued 2018Released 2015
Same drawbars and waterfall action as the 5D 61 with a six-octave E-to-E range, at 9.2 kg.
Replaced by Electro 6D 73
Replaces Electro 4 SW73
Specifications
General
- Manufacturer
- Nord
- Status
- Discontinued
- Released
- 2015
Keyboard
- Keys
- 73
- Key action
- Semi-weighted
- Aftertouch
- None
- Keybed
- Semi-weighted waterfall
Sounds
- Sections
- Piano, Electric piano, Organ, Sample playback
- Drawbars
- Physical
- Sound engine
- Nord Piano Library (1 GB) and Nord Sample Library (256 MB), with the Nord C2D organ engine
- Organ models
- Nord C2D B3 tonewheel, B3 + Bass, Vox, Farfisa, principal pipe organ
- Polyphony
- Piano 40–60 voices, sample synth 15 voices
Connections
- Outputs
- 1/4-inch unbalanced, Headphones
- MIDI ports
- DIN in, DIN out, USB
- Pedal inputs
- Sustain, Expression, Rotor speed
Features
- Features
- Nine physical drawbars, Split and layer two sections, Set List mode, Rotary speaker simulation
Size & weight
- Colours
- Red
- Dimensions (W × D × H)
- 1066 × 296 × 97 mm
- Weight
- 9.2 kg
