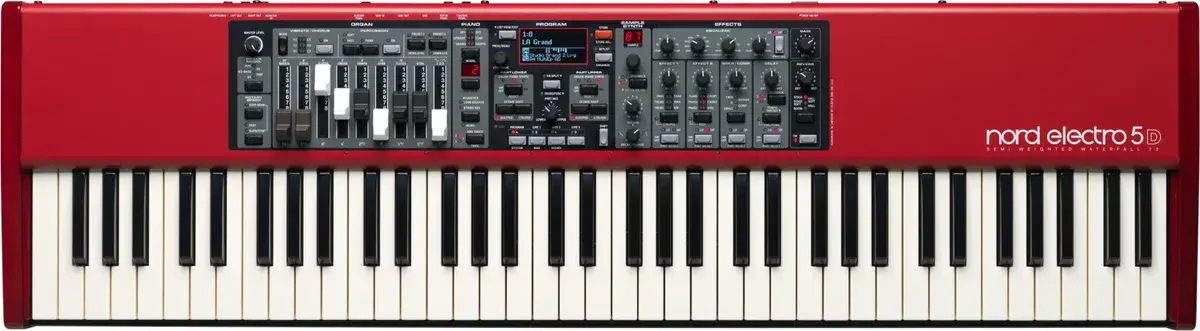

Nord Electro 5 HP 73
Discontinued 2018Released 2015
The hammer-action Electro 5: a Hammer Action Portable keybed, with the organ on LED drawbar buttons rather than physical drawbars. 11.4 kg.
Replaced by Electro 6 HP 73
Replaces Electro 4 HP 73
Specifications
General
- Manufacturer
- Nord
- Status
- Discontinued
- Released
- 2015
Keyboard
- Keys
- 73
- Key action
- Hammer-action
- Aftertouch
- None
- Keybed
- Hammer Action Portable
Sounds
- Sections
- Piano, Electric piano, Organ, Sample playback
- Drawbars
- LED (buttons)
- Sound engine
- Nord Piano Library (1 GB) and Nord Sample Library (256 MB), with the Nord C2D organ engine
- Organ models
- Nord C2D B3 tonewheel, B3 + Bass, Vox, Farfisa, principal pipe organ
- Polyphony
- Piano 40–60 voices, sample synth 15 voices
Connections
- Outputs
- 1/4-inch unbalanced, Headphones
- MIDI ports
- DIN in, DIN out, USB
- Pedal inputs
- Sustain, Expression, Rotor speed
Features
- Features
- LED drawbar buttons rather than physical drawbars, Split and layer two sections, Set List mode, Rotary speaker simulation
Size & weight
- Colours
- Red
- Dimensions (W × D × H)
- 1074 × 344 × 121 mm
- Weight
- 11.4 kg
