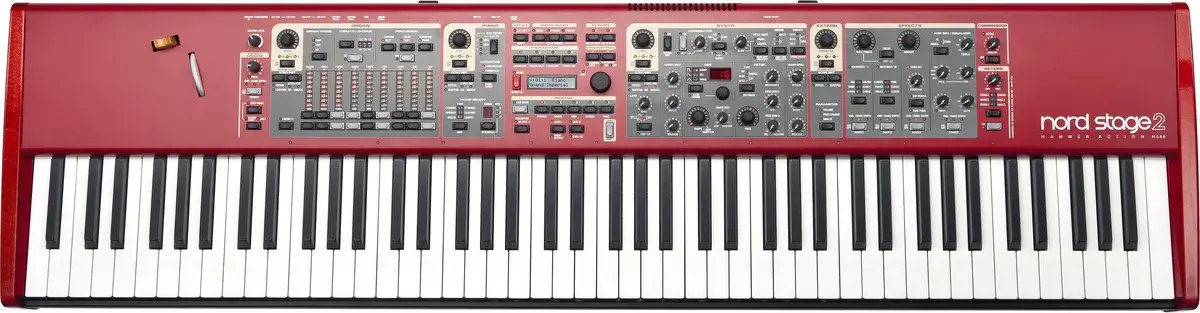

Nord Stage 2 HA88
Discontinued 2015Released 2011
The Stage 2 added Nord Sample Library playback to the synth, the B3 and transistor organ engine from the C2 and MIDI over USB. 88 weighted hammer keys with aftertouch, 18.5 kg.
Replaced by Stage 2 EX 88
Replaces Stage EX 88
Specifications
General
- Manufacturer
- Nord
- Status
- Discontinued
- Released
- 2011
Keyboard
- Keys
- 88
- Key action
- Hammer-action
- Aftertouch
- Channel
- Keybed
- Hammer action weighted (medium)
Sounds
- Sections
- Piano, Electric piano, Organ, Synth, Sample playback
- Drawbars
- LED (buttons)
- Sound engine
- Piano memory approx. 500 MB and Nord Sample Library (approx. 380 MB), plus analogue, FM and wavetable synthesis
- Organ models
- B3 tonewheel, Vox Continental, Farfisa
- Polyphony
- Piano 40–60 voices, synth 18 voices
Connections
- Outputs
- 1/4-inch unbalanced, Headphones
- MIDI ports
- DIN in, DIN out, USB
- Pedal inputs
- Sustain, Expression, Rotor speed, Organ swell
Features
- Features
- LED drawbar buttons rather than physical drawbars, Two independent slots per section, Three split zones, Arpeggiator, Rotary speaker simulation, Four assignable outputs
Size & weight
- Colours
- Red
- Dimensions (W × D × H)
- 1287 × 334 × 118 mm
- Weight
- 18.5 kg
