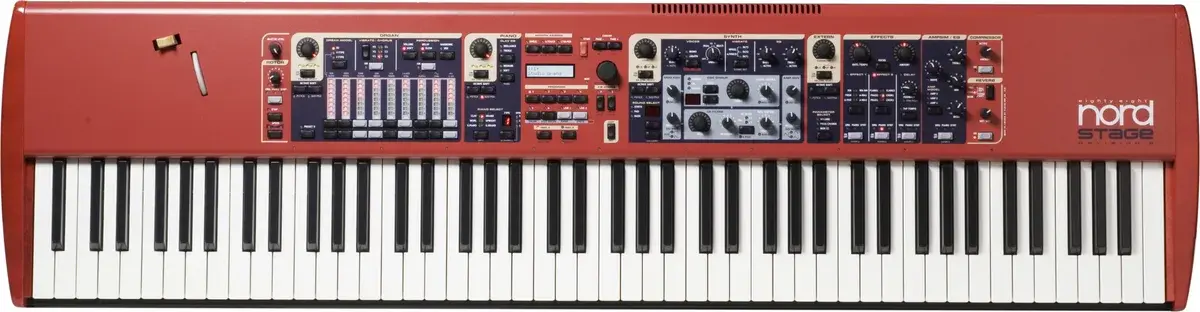

Nord Stage 76
Discontinued 2008Released 2005
The first Nord Stage with 76 hammer-action keys, 2 kg lighter than the 88 at 16.5 kg.
Replaced by Stage EX 76
Specifications
General
- Manufacturer
- Nord
- Status
- Discontinued
- Released
- 2005
Keyboard
- Keys
- 76
- Key action
- Hammer-action
- Aftertouch
- Channel
- Keybed
- Hammer action weighted
Sounds
- Sections
- Piano, Electric piano, Organ, Synth
- Drawbars
- LED (buttons)
- Sound engine
- Sampled acoustic and electric pianos, plus a virtual-analogue, FM and wavetable (32 waveforms) synth
- Organ models
- B3 tonewheel, Vox Continental, Farfisa
- Polyphony
- Piano 40–60 voices, synth 16 voices
Connections
- Outputs
- 1/4-inch unbalanced, Headphones
- MIDI ports
- DIN in, DIN out
- Pedal inputs
- Sustain, Expression, Rotor speed, Organ swell
Features
- Features
- LED drawbar buttons rather than physical drawbars, Three split zones, Rotary speaker simulation, Four assignable outputs
Size & weight
- Colours
- Red
- Dimensions (W × D × H)
- 1132 × 334 × 121 mm
- Weight
- 16.5 kg
