Yamaha YC61
CurrentReleased 2020
Yamaha's answer to a drawbar organ that also has to cover piano: a VCM tonewheel engine with nine physical drawbars, two keys sections on top, and 7.1 kg to carry. The only YC without XLR outputs.
Specifications
General
- Manufacturer
- Yamaha
- Status
- Current
- Released
- 2020
Keyboard
- Keys
- 61
- Key action
- Semi-weighted
- Aftertouch
- None
- Keybed
- Semi-weighted waterfall, initial touch
Sounds
- Sections
- Organ, Piano, Electric piano, Synth
- Drawbars
- Physical
- Sound engine
- VCM Organ, AWM2 sample playback and FM, 200 voices
- Organ models
- VCM tonewheel organ in three vintages, plus an eight-operator FM organ
- Polyphony
- 128 voices (VCM Organ and AWM2 combined), 128 FM
Connections
- Outputs
- 1/4-inch unbalanced, Headphones
- MIDI ports
- DIN in, DIN out, USB
- Pedal inputs
- Sustain, Expression, Footswitch
Features
- Features
- Nine physical drawbars, VCM rotary speaker, Two keys sections plus organ, 320 Live Set slots, VCM effects, FM organ mode
Size & weight
- Colours
- Black
- Dimensions (W × D × H)
- 896 × 309 × 108 mm
- Weight
- 7.1 kg
More from Yamaha
Yamaha

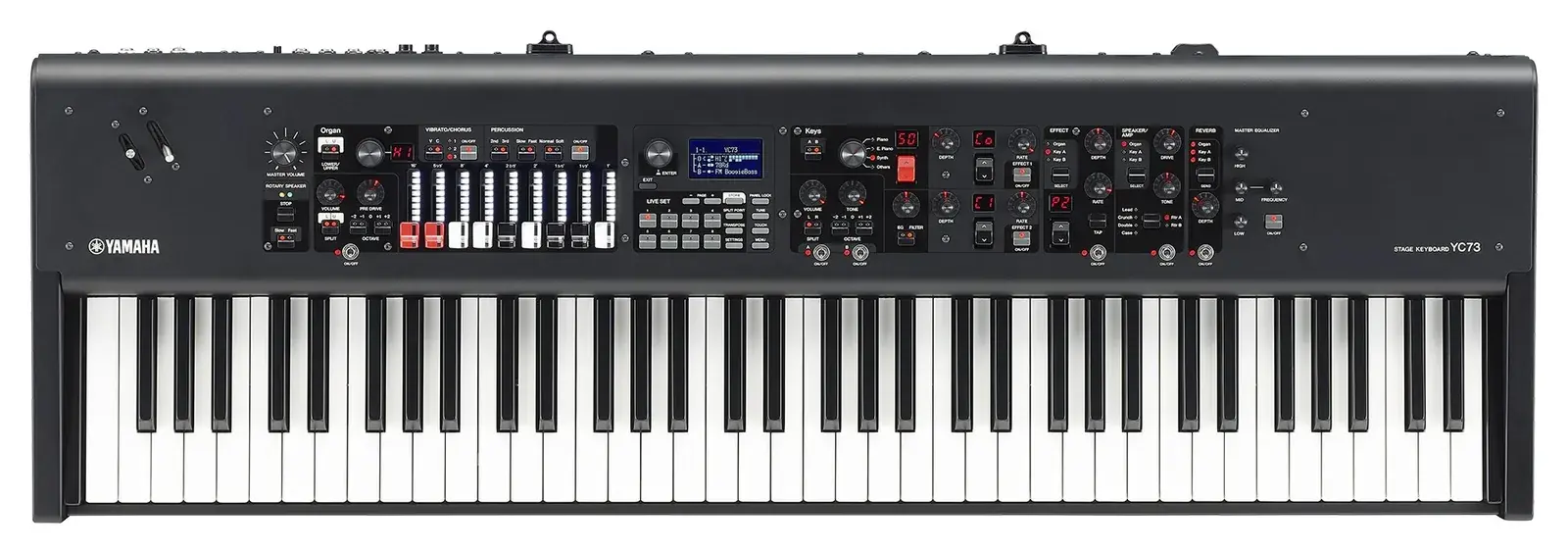

YC73
