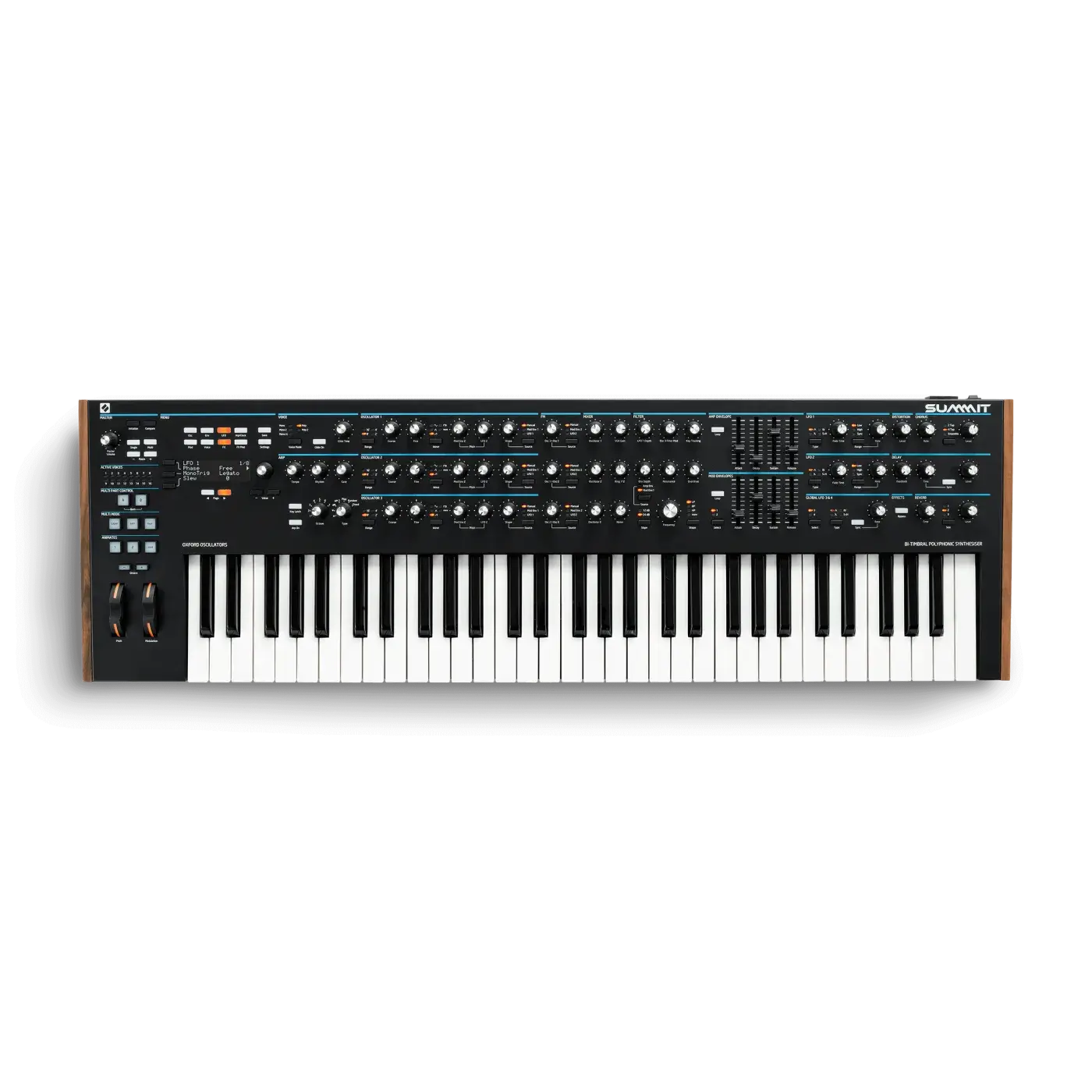

Novation Summit
CurrentReleased 2019
A 16-voice, two-part keyboard synth that is effectively two Peaks in one 61-key instrument. Its FPGA oscillators handle analogue-style, wavetable and FM sounds, then pass through analogue filters, VCAs and distortion. It suits players who want to split or layer two big patches live and value hands-on control over menus.
Where to buy:Andertons ↗
Specifications
General
- Manufacturer
- Novation
- Status
- Current
- Released
- 2019
Sound engine
- Engine
- Hybrid (digital oscillators, analogue filters)
- Voices
- 16
- Polyphony
- 16 voices
- Oscillators
- 3 FPGA New Oxford Oscillators per voice (sine, triangle, saw, pulse plus 43 wavetables), noise and ring modulator
- Filter
- Analogue state-variable OTA, 12/24dB, low-pass/band-pass/high-pass plus dual-filter combinations
- Multi-timbral parts
- 2
- Sequencer
- None (arpeggiator with 33 patterns)
- Effects
- Distortion, Chorus, Flanger, Delay, Reverb
Keyboard
- Keys
- 61
- Key size
- Full
- Key action
- Semi-weighted
- Aftertouch
- Channel
Format
- Format
- Keyboard
- Motorised knobs
- No
- Features
- Two-part split, layer and dual modes, Wavetable editor with audio import, Three stages of analogue distortion, 16-slot modulation matrix, Audio input for processing external sources, Auxiliary stereo outputs, CV modulation input, Scala microtuning
Connections
- MIDI ports
- DIN in, DIN out, DIN thru, USB
- CV / Gate
- Yes
Size & weight
- Dimensions (W × D × H)
- 998.5 × 303.5 × 92 mm
