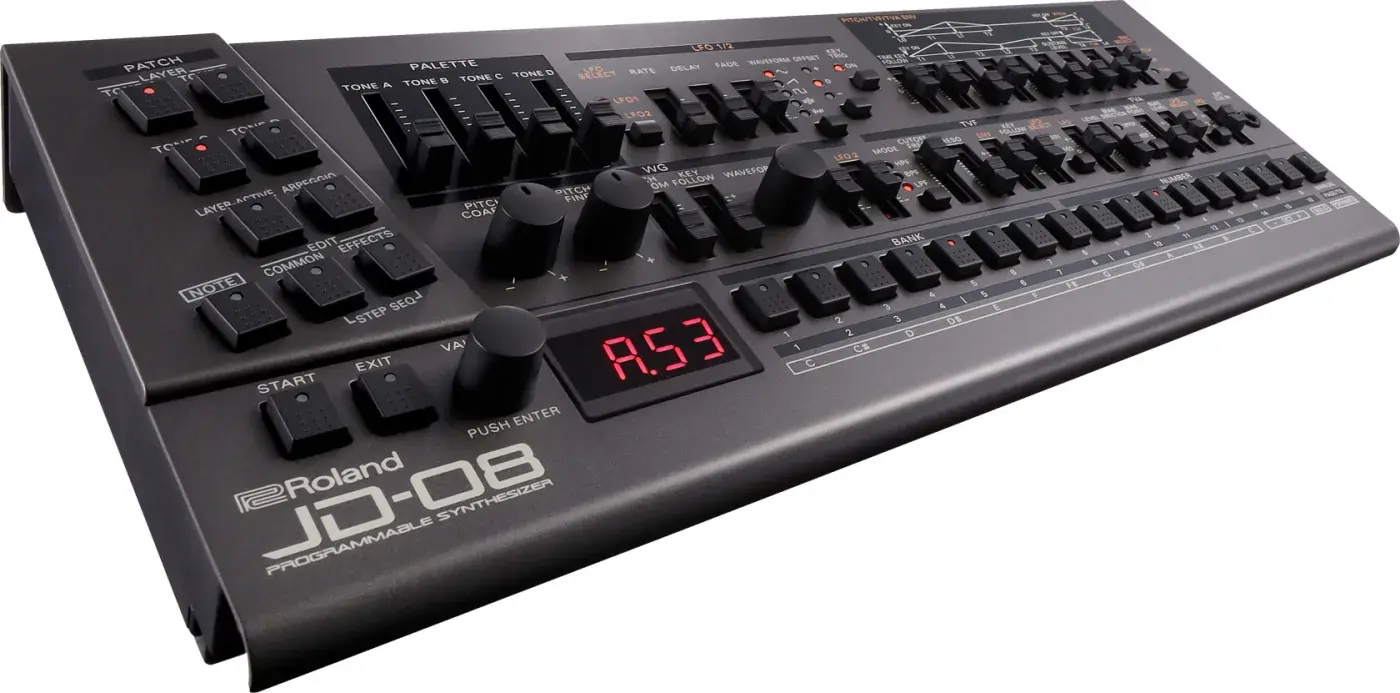

Roland JD-08
CurrentReleased 2022
A Boutique module recreating the JD-800 digital synthesiser with all 108 of its original waveforms and the original 64 presets. It expands polyphony to as many as 128 voices and adds two-part multitimbrality and a 64-step polyphonic sequencer. It suits fans of bright early-90s digital pads and pianos who want the JD-800 sound for a fraction of the size.
Specifications
General
- Manufacturer
- Roland
- Status
- Current
- Released
- 2022
Sound engine
- Engine
- Digital (sampling)
- Voices
- 128
- Polyphony
- Up to 128 voices (depends on patch)
- Oscillators
- 4 tones per patch drawn from the JD-800's 108 waveforms
- Filter
- Per-tone multimode TVF (JD-800 style)
- Multi-timbral parts
- 2
- Sequencer
- 2-part, 64-step, 8-note polyphonic with motion recording
- Effects
- Distortion, Phaser, Spectrum, Enhancer, Delay, Chorus, Reverb
- Models
- Roland JD-800
Keyboard
- Keys
- 0
Format
- Format
- Desktop module
- Motorised knobs
- No
- Features
- Original 64 JD-800 presets plus 21 new, Arpeggiator, Runs on 4 x AA or USB bus power, USB-C audio/MIDI, Optional K-25m keyboard and DK-01 dock
Connections
- MIDI ports
- DIN in, DIN out, USB
- CV / Gate
- No
Size & weight
- Dimensions (W × D × H)
- 300 × 128 × 49 mm
- Weight
- 0.84 kg
