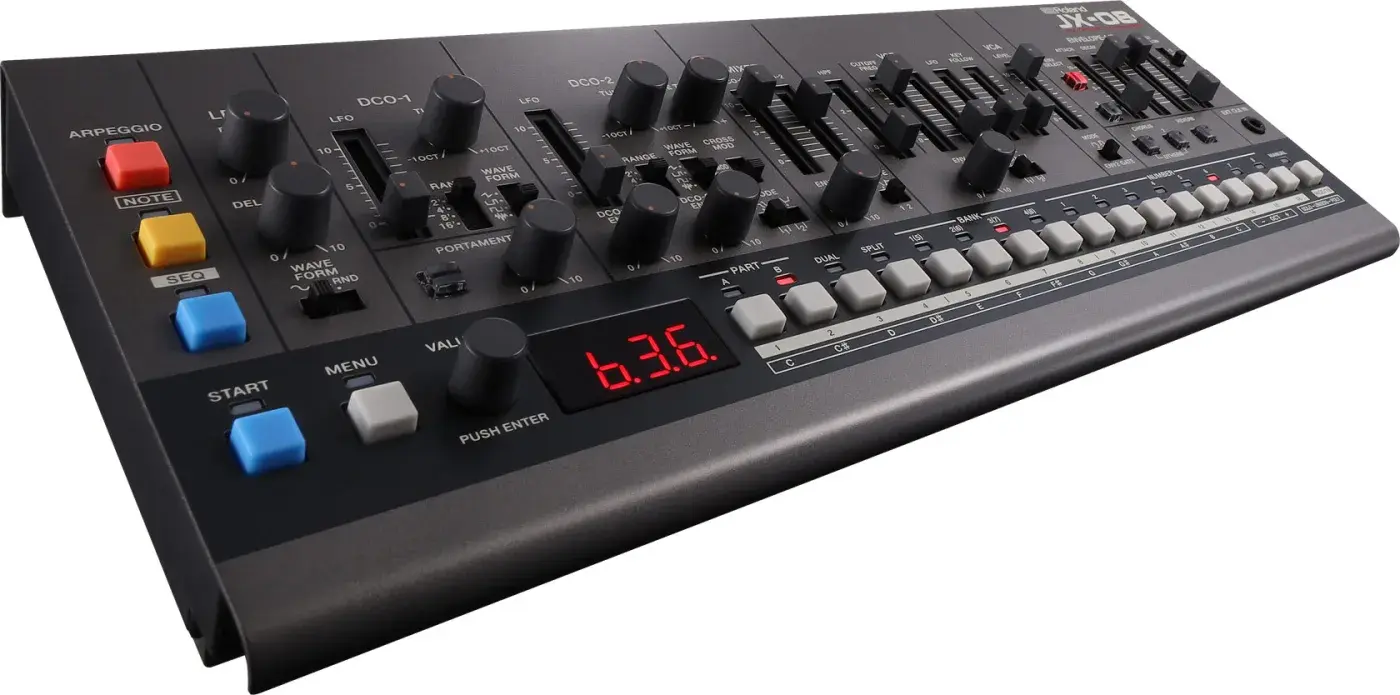

Roland JX-08
CurrentReleased 2022
A Boutique module recreating the 1985 JX-8P with modern extras: up to 20 voices, two-part multitimbrality and a polyphonic 64-step sequencer. Two DCOs per voice and a big effects section give it the glassy, slightly digital 80s character of the original. It suits people after classic JX pads and brass in a small, battery-powered box.
Specifications
General
- Manufacturer
- Roland
- Status
- Current
- Released
- 2022
Sound engine
- Engine
- Analogue modelling
- Voices
- 20
- Polyphony
- Up to 20 voices
- Oscillators
- 2 DCOs per voice with cross-mod and sync
- Filter
- Resonant low-pass VCF model plus high-pass
- Multi-timbral parts
- 2
- Sequencer
- 2-part, 64-step, 8-note polyphonic with motion recording
- Effects
- Chorus, Phaser, Delay, Reverb, Overdrive, Fuzz, Bit crusher, Lo-fi compressor, Pitch shifter
- Models
- Roland JX-8P
Keyboard
- Keys
- 0
Format
- Format
- Desktop module
- Motorised knobs
- No
- Features
- Dual and split modes, Arpeggiator, Runs on 4 x AA or USB bus power, USB-C audio/MIDI, Optional K-25m keyboard and DK-01 dock
Connections
- MIDI ports
- DIN in, DIN out, USB
- CV / Gate
- No
Size & weight
- Dimensions (W × D × H)
- 300 × 128 × 47 mm
- Weight
- 0.9 kg
