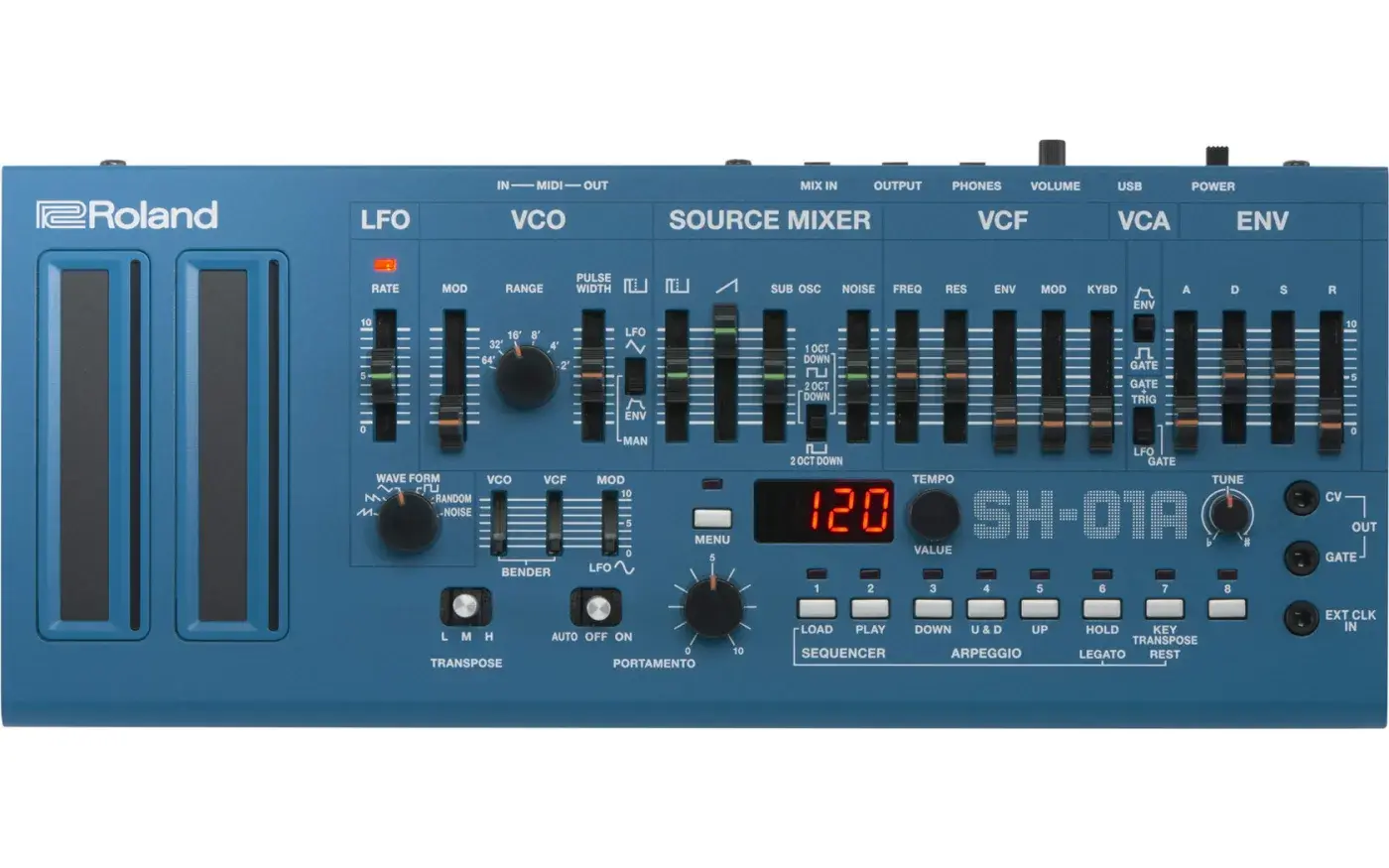

Roland SH-01A
CurrentReleased 2018
A Boutique recreation of the SH-101 monosynth using Roland's ACB modelling, with the original's single oscillator, sub-oscillator, noise and resonant filter. Unlike the original it can play four voices in poly, unison and chord modes and has a 100-step sequencer. It suits bass and lead players who want SH-101 sounds with CV/gate out to talk to modular gear.
Specifications
General
- Manufacturer
- Roland
- Status
- Current
- Released
- 2018
Sound engine
- Engine
- Analogue modelling
- Voices
- 4
- Polyphony
- 4 voices (mono, unison, poly and chord modes)
- Oscillators
- 1 VCO per voice (pulse, saw) + sub-oscillator + noise
- Filter
- Resonant low-pass VCF model
- Multi-timbral parts
- 1
- Sequencer
- 100-step, 4-note polyphonic; 64 patterns
- Models
- Roland SH-101
Keyboard
- Keys
- 0
Format
- Format
- Desktop module
- Motorised knobs
- No
- Features
- CV and gate outputs, Arpeggiator, Runs on 4 x AA or USB bus power, USB audio/MIDI, External clock input, Optional K-25m keyboard and DK-01 dock
Connections
- MIDI ports
- DIN in, DIN out, USB
- CV / Gate
- Yes
Size & weight
- Colours
- Grey, Blue, Red
- Dimensions (W × D × H)
- 300 × 128 × 46 mm
- Weight
- 0.97 kg
