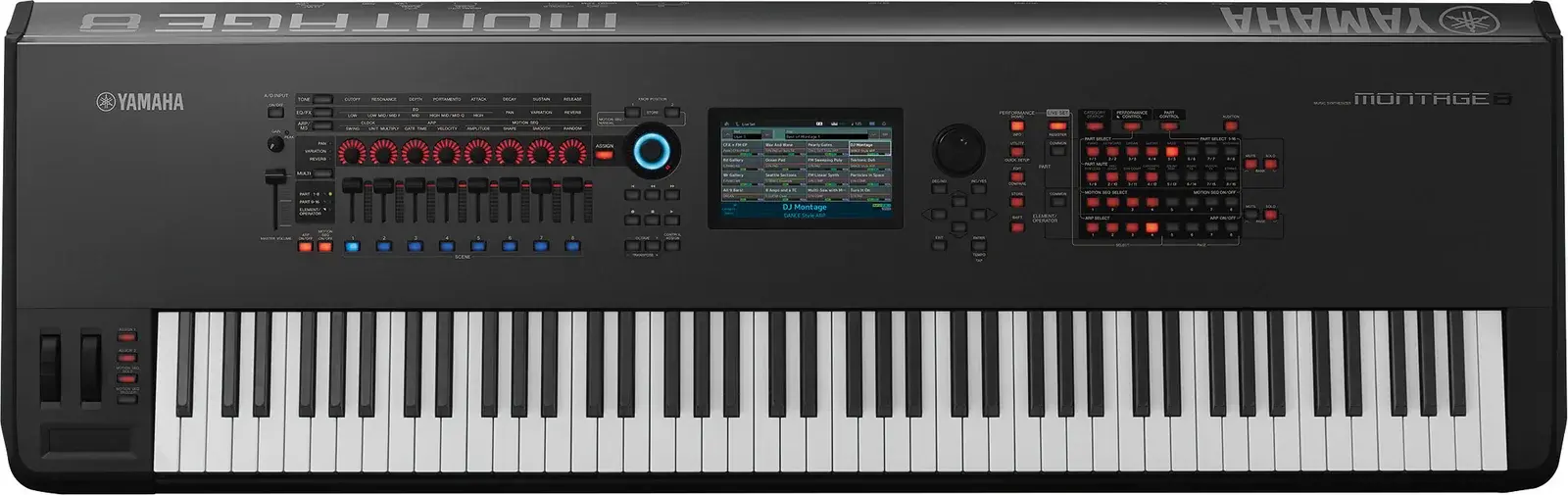

Yamaha MONTAGE8
Discontinued 2023Released 2016
The 88-note original, on a Balanced Hammer Effect keybed rather than the M8x's GEX — so channel aftertouch, not polyphonic. 29 kg, which is the heaviest board Yamaha has put in this range.
Replaced by MONTAGE M8x
Specifications
General
- Manufacturer
- Yamaha
- Status
- Discontinued
- Released
- 2016
Sound engine
- Engine
- Digital (sample and FM)
- Voices
- 128
- Polyphony
- AWM2 128, FM-X 128
- Oscillators
- AWM2 sample playback (8 elements), FM-X 8-operator (88 algorithms)
- Filter
- 18 filter types
- Multi-timbral parts
- 16
- Sequencer
- 16-track performance recorder
- Effects
- Reverb, Delay, Chorus, Flanger, Phaser, Distortion, Compressor, EQ
Keyboard
- Keys
- 88
- Key size
- Full
- Key action
- Hammer-action
- Aftertouch
- Channel
- Keybed
- Balanced Hammer Effect
Format
- Format
- Keyboard
- Motorised knobs
- No
- Features
- 7-inch colour touchscreen, Super Knob, Motion Sequencer, Ribbon controller, 8 sliders, 8 knobs, USB audio interface (32 out / 6 in)
Connections
- MIDI ports
- DIN in, DIN out, DIN thru, USB
- CV / Gate
- No
Size & weight
- Colours
- Black, White
- Dimensions (W × D × H)
- 1450 × 460 × 170 mm
- Weight
- 29 kg
