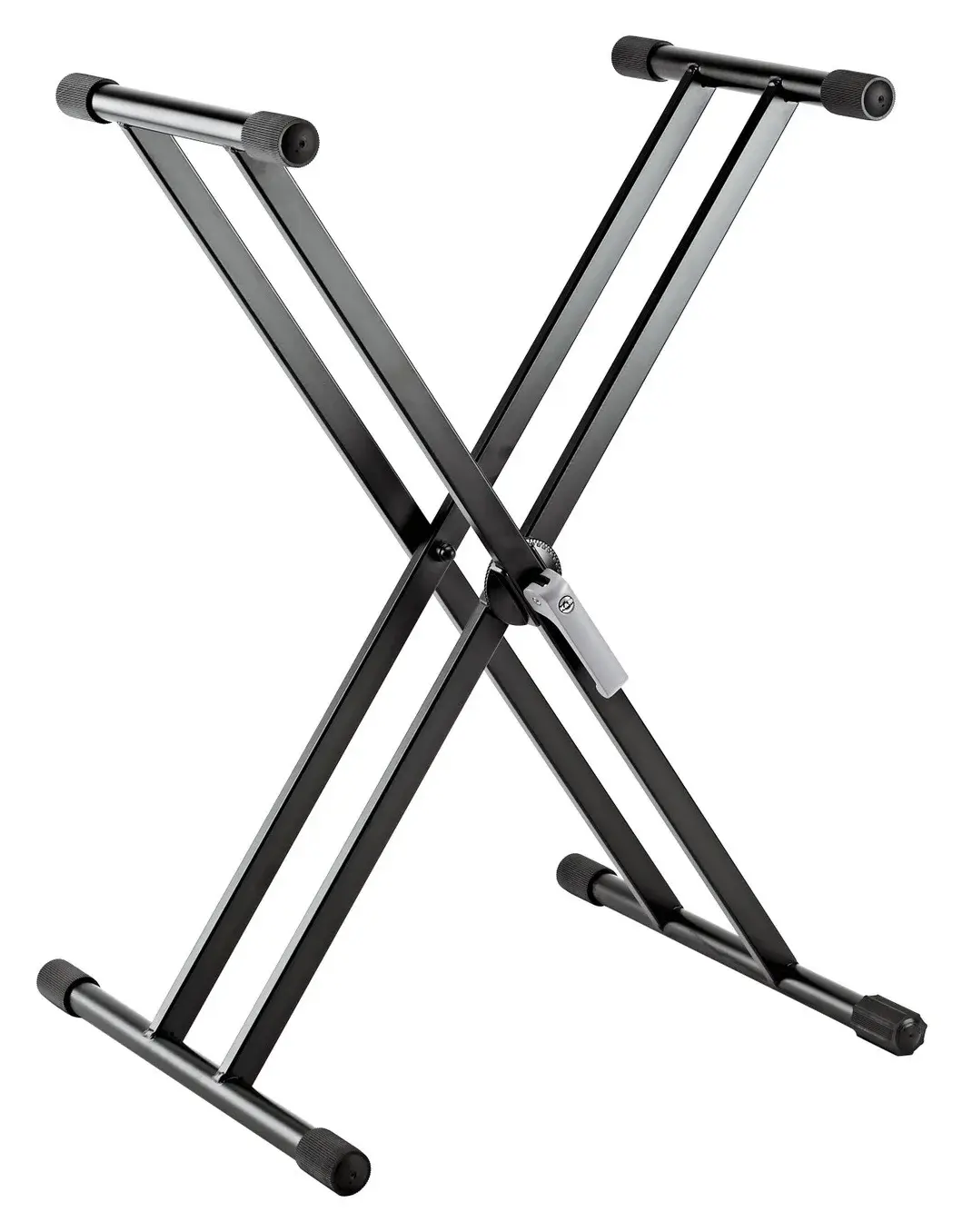

18997 Lightweight Double Brace X-Frame

Name: K&M 18997 Lightweight Double Brace X-Frame
Brand: K&M
Price: 85 GBP
Availability: InStock

Current£85

Aluminium double-braced X-stand at just 2.45 kg, still rated for 50 kg; 59–95 cm in 5° steps with a scale.

Manufacturer page ↗

Specifications

General

Manufacturer: K&M
Status: Current
Price: £85

Design

Stand type: X-frame
Bracing: Double
Tiers: 1
Height adjustment: Stepped (5°) with scale

Size & capacity

Max load: 50 kg
Min height: 594 mm
Max height: 946 mm
Support width (mm): 327–789
Support depth: 350 mm

Build

Folds for transport: Yes
Material: Aluminium
Features: Movable rear end caps

Size & weight

Colours: Black
Weight: 2.45 kg
