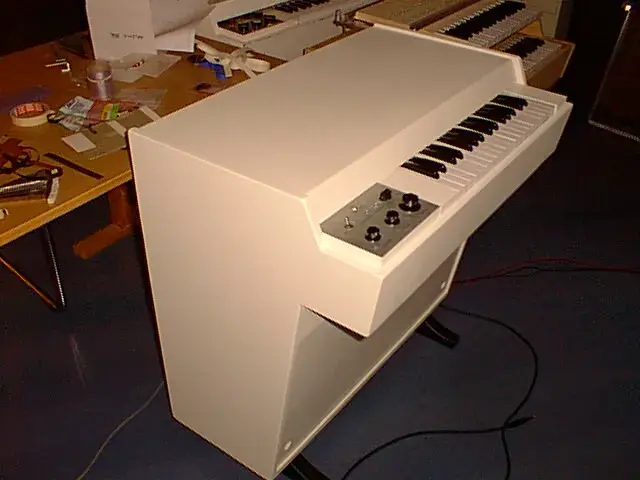

Mellotron Mark VI
DiscontinuedReleased 1999
A newly built tape Mellotron from Markus Resch's workshop in Sweden. It is really an M400, re-engineered with a valve preamp, stainless capstan, heavier flywheel, faster keyboard action and a two-speed motor switch. Sound On Sound called it a real Model 400 built properly, and it was the only way to buy a new tape machine in the M400 style. It was built to order by email and is no longer in the shop, and tapes and azimuth do not always match old Streetly frames.
Replaces M400
Specifications
General
- Manufacturer
- Mellotron
- Status
- Discontinued
- Released
- 1999
Keyboard
- Keys
- 35
- Aftertouch
- None
- Keybed
- Wooden 'fast-action' keyboard, G to F, with staggered pressure pads
Sounds
- Sections
- Sample playback
- Drawbars
- None
- Sound engine
- Tape replay: one 3/8-inch tape strip per key, three tracks per removable frame (A/B/C), roughly 8 seconds per note
- Organ models
- None
- Polyphony
- Full polyphony (35 notes)
Connections
- Outputs
- 1/4-inch balanced
Features
- Features
- Tape replay, Pitch control, Removable tape frame, Valve preamp, Two-speed motor (high/low) switch, Stainless steel capstan, Metric hardware
Size & weight
- Colours
- White, Black, Brown, Mahogany
- Dimensions (W × D × H)
- 838 × 559 × 864 mm
- Weight
- 44.5 kg
