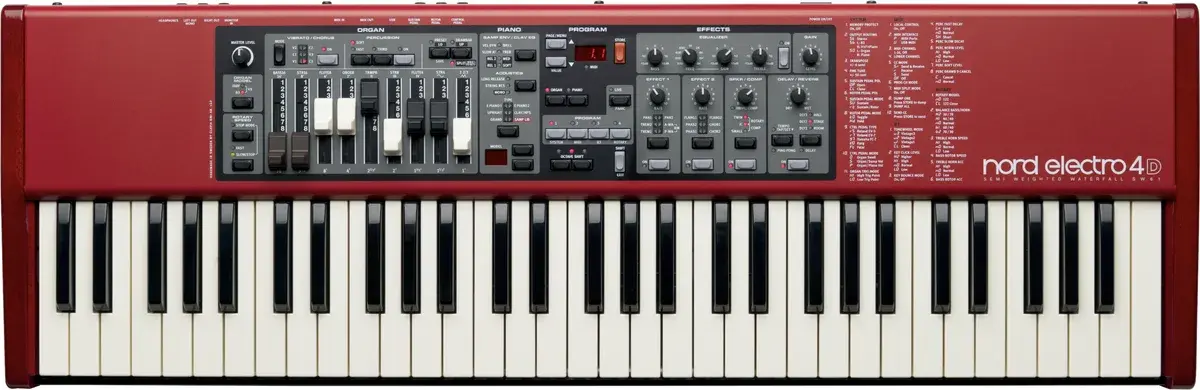

Nord Electro 4D 61
Discontinued 2015Released 2012
The Electro 4 brought the C2D tonewheel engine, a 122 rotary simulation and USB MIDI to the range. The 4D is the drawbar model: nine physical drawbars on 61 waterfall keys, with less sound memory than the 73-key versions.
Replaced by Electro 5D 61
Replaces Electro 3 61
Specifications
General
- Manufacturer
- Nord
- Status
- Discontinued
- Released
- 2012
Keyboard
- Keys
- 61
- Key action
- Semi-weighted
- Aftertouch
- None
- Keybed
- Semi-weighted waterfall
Sounds
- Sections
- Piano, Electric piano, Organ, Sample playback
- Drawbars
- Physical
- Sound engine
- Nord Piano Library (185 MB) and Nord Sample Library (68 MB), with the Nord C2D organ engine
- Organ models
- Nord C2D B3 tonewheel, Vox Continental, Farfisa
- Polyphony
- Piano 40–60 voices, samples 15 voices
Connections
- Outputs
- 1/4-inch unbalanced, Headphones
- MIDI ports
- DIN in, DIN out, USB
- Pedal inputs
- Sustain, Expression, Rotor speed
Features
- Features
- Nine physical drawbars, 122 rotary speaker simulation, USB MIDI
Size & weight
- Colours
- Red
- Dimensions (W × D × H)
- 900 × 300 × 100 mm
- Weight
- 7.65 kg
