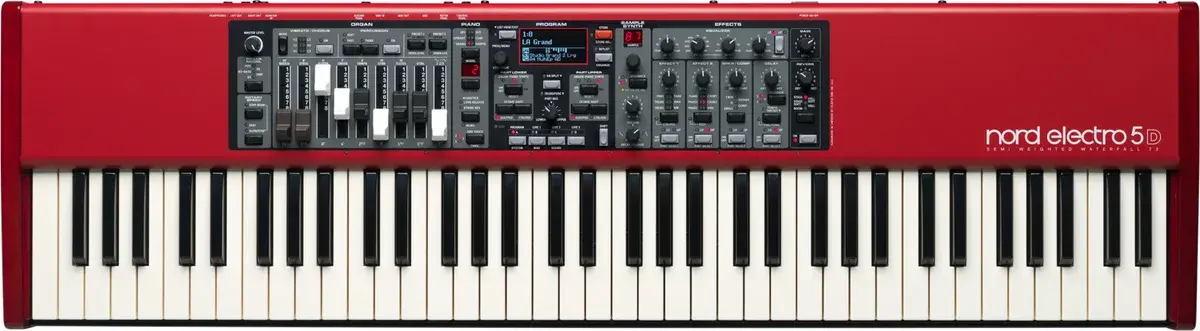

Nord Electro 5D 61
Discontinued 2018Released 2015
The Electro 5 added split and layer across two sections, a 1 GB piano library and the C2D organ, with nine physical drawbars on the D models. The same 8.1 kg case the Electro 6 went on to use.
Replaced by Electro 6D 61
Replaces Electro 4D 61
Specifications
General
- Manufacturer
- Nord
- Status
- Discontinued
- Released
- 2015
Keyboard
- Keys
- 61
- Key action
- Semi-weighted
- Aftertouch
- None
- Keybed
- Semi-weighted waterfall
Sounds
- Sections
- Piano, Electric piano, Organ, Sample playback
- Drawbars
- Physical
- Sound engine
- Nord Piano Library (1 GB) and Nord Sample Library (256 MB), with the Nord C2D organ engine
- Organ models
- Nord C2D B3 tonewheel, B3 + Bass, Vox, Farfisa, principal pipe organ
- Polyphony
- Piano 40–60 voices, sample synth 15 voices
Connections
- Outputs
- 1/4-inch unbalanced, Headphones
- MIDI ports
- DIN in, DIN out, USB
- Pedal inputs
- Sustain, Expression, Rotor speed
Features
- Features
- Nine physical drawbars, Split and layer two sections, Set List mode, Rotary speaker simulation
Size & weight
- Colours
- Red
- Dimensions (W × D × H)
- 900 × 296 × 97 mm
- Weight
- 8.1 kg
