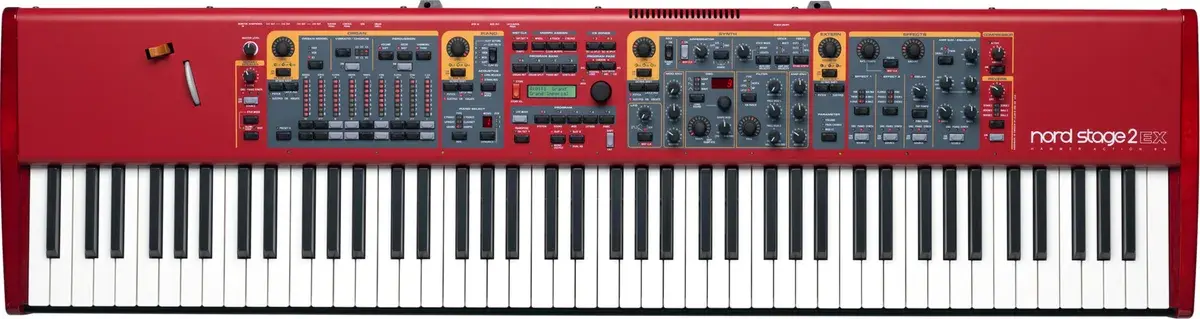

Nord Stage 2 EX HP76
Discontinued 2017Released 2015
The Stage 2 EX on a 76-note Hammer Action Portable keybed, which cut the weight to 12.4 kg from the Stage 2 HA76's 16.5.
Replaced by Stage 3 HP76
Replaces Stage 2 HA76
Specifications
General
- Manufacturer
- Nord
- Status
- Discontinued
- Released
- 2015
Keyboard
- Keys
- 76
- Key action
- Hammer-action
- Aftertouch
- Channel
- Keybed
- Hammer Action Portable
Sounds
- Sections
- Piano, Electric piano, Organ, Synth, Sample playback
- Drawbars
- LED (buttons)
- Sound engine
- Piano memory 1 GB and approx. 380 MB of sample memory, plus analogue, FM and wavetable synthesis
- Organ models
- B3 tonewheel, Vox Continental, Farfisa
- Polyphony
- Piano 40–60 voices, synth 18 voices
Connections
- Outputs
- 1/4-inch unbalanced, Headphones
- MIDI ports
- DIN in, DIN out, USB
- Pedal inputs
- Sustain, Expression, Rotor speed, Organ swell
Features
- Features
- LED drawbar buttons rather than physical drawbars, Two independent slots per section, Three split zones, Arpeggiator, Rotary speaker simulation, Four assignable outputs
Size & weight
- Colours
- Red
- Dimensions (W × D × H)
- 1122 × 347 × 127 mm
- Weight
- 12.4 kg
