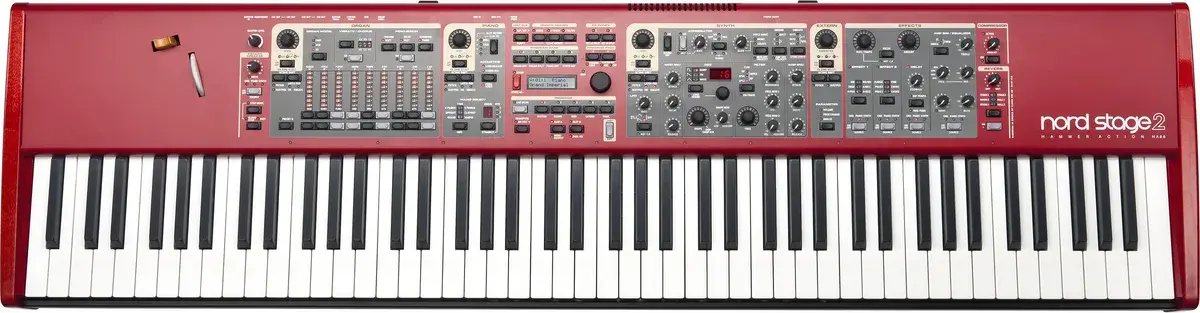

Nord Stage 2 HA76
Discontinued 2015Released 2011
Stage 2 with 76 keys (E to G) of the same full hammer action as the 88, so still 16.5 kg.
Replaced by Stage 2 EX HP76
Replaces Stage EX 76
Specifications
General
- Manufacturer
- Nord
- Status
- Discontinued
- Released
- 2011
Keyboard
- Keys
- 76
- Key action
- Hammer-action
- Aftertouch
- Channel
- Keybed
- Hammer action weighted (medium)
Sounds
- Sections
- Piano, Electric piano, Organ, Synth, Sample playback
- Drawbars
- LED (buttons)
- Sound engine
- Piano memory approx. 500 MB and Nord Sample Library (approx. 380 MB), plus analogue, FM and wavetable synthesis
- Organ models
- B3 tonewheel, Vox Continental, Farfisa
- Polyphony
- Piano 40–60 voices, synth 18 voices
Connections
- Outputs
- 1/4-inch unbalanced, Headphones
- MIDI ports
- DIN in, DIN out, USB
- Pedal inputs
- Sustain, Expression, Rotor speed, Organ swell
Features
- Features
- LED drawbar buttons rather than physical drawbars, Two independent slots per section, Three split zones, Arpeggiator, Rotary speaker simulation, Four assignable outputs
Size & weight
- Colours
- Red
- Dimensions (W × D × H)
- 1121 × 334 × 118 mm
- Weight
- 16.5 kg
