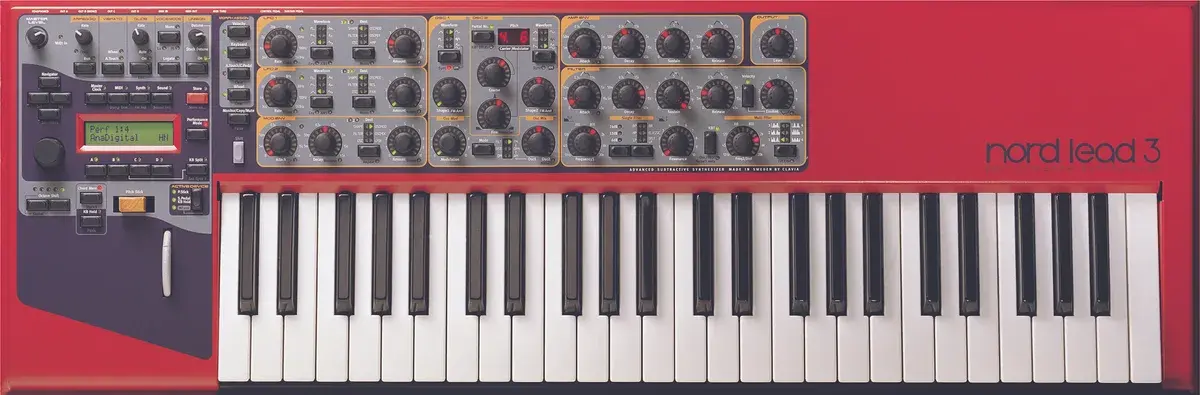

Nord Lead 3
Discontinued 2007Released 2001
The deep one: 24 voices, 2- and 4-operator FM from its Dual Sine waveform, a long list of single and dual filter modes and four morph groups, all edited on encoders with LED rings. The only Lead with an aftertouch keybed.
Specifications
General
- Manufacturer
- Nord
- Status
- Discontinued
- Released
- 2001
Sound engine
- Engine
- Analogue modelling
- Voices
- 24
- Polyphony
- 24 voices
- Oscillators
- 2 oscillators (triangle, saw, pulse, sine, noise, Dual Sine FM) plus sync oscillator; distortion, FM, AM/RM modulation
- Filter
- 6/12/24 dB low-pass and high-pass, band-pass, band-reject, classic and distorted low-pass; dual multi-filter modes
- Multi-timbral parts
- 4
Keyboard
- Keys
- 49
- Key size
- Full
- Aftertouch
- Channel
Format
- Format
- Keyboard
- Motorised knobs
- No
- Features
- Pitch Stick, Arpeggiator, Keyboard split, 4 morph groups, Encoders with LED rings, Stereo unison, 4 audio outputs
Connections
- MIDI ports
- DIN in, DIN out, DIN thru
- CV / Gate
- No
Size & weight
- Dimensions (W × D × H)
- 870 × 278 × 100 mm
- Weight
- 6.3 kg
