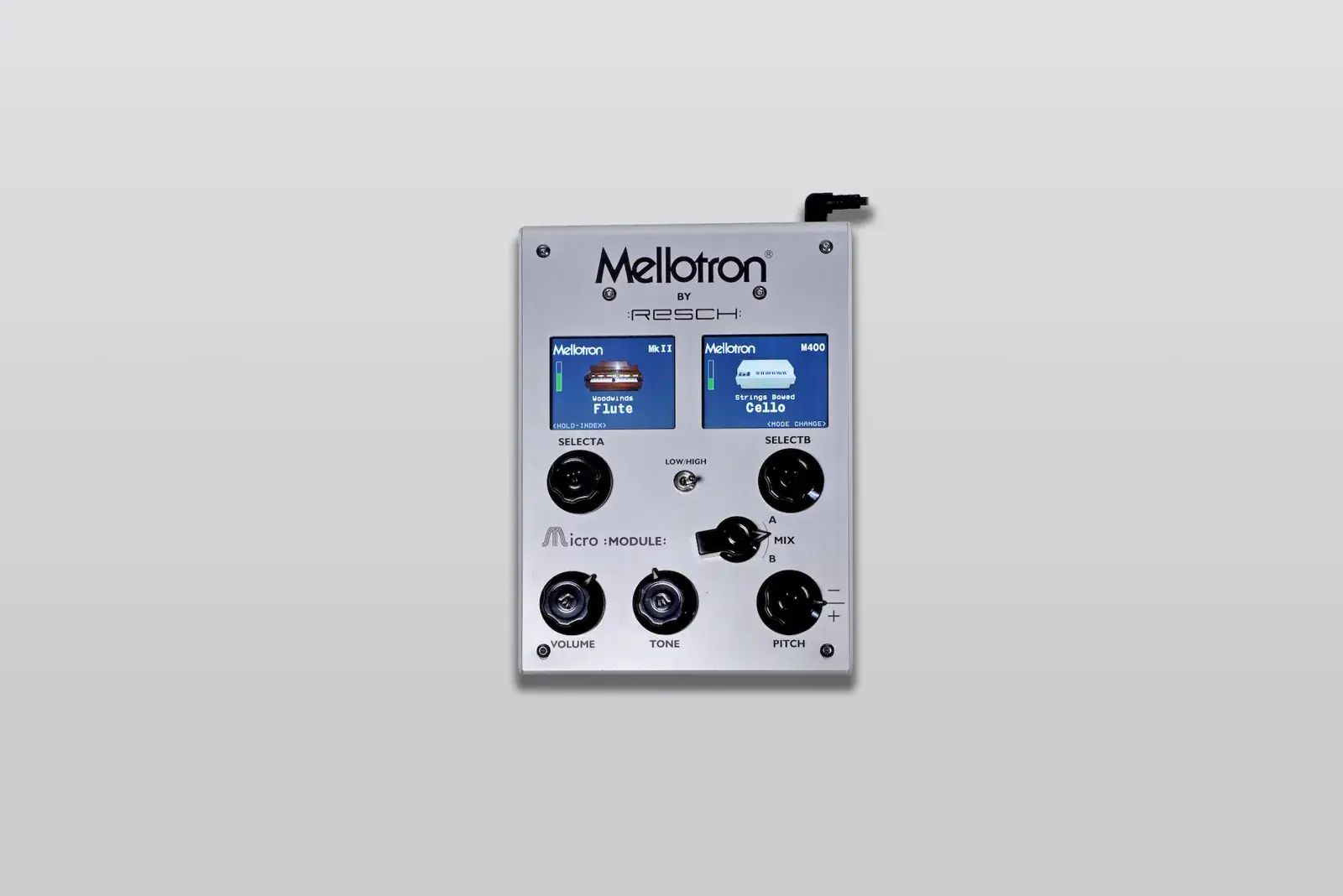

Mellotron Micro Module
CurrentReleased 2025
Essentially a Mellotron Micro with the keyboard removed. It is a small desktop box holding the same 100 sounds, and at $615 it is the cheapest way to get the official tape library in hardware. It responds to polyphonic aftertouch from a suitable controller, but the MIDI sockets are 3.5 mm (Type B) and there is no MIDI out.
Replaces M4000D Micro
Specifications
General
- Manufacturer
- Mellotron
- Status
- Current
- Released
- 2025
Instrument
- Type
- Digital tape replay
- Sound engine
- Micro engine on microSD: 100 Mellotron and Chamberlin sounds; not expandable
- Polyphony
- 10 notes
- Features
- 100 Mellotron and Chamberlin sounds, 24-bit uncompressed playback, Responds to mono and polyphonic aftertouch over MIDI, High/low switch drops playback one or two octaves, Two displays, Firmware updates via iOS app
Keyboard
- Aftertouch
- None
Connections
- Outputs
- 1/4-inch unbalanced, Headphones
- MIDI ports
- 3.5 mm TRS in (Type B), 3.5 mm TRS thru (Type B)
- Pedal inputs
- Sustain
Size & weight
- Colours
- White
- Dimensions (W × D × H)
- 184 × 135 × 65 mm
- Weight
- 0.71 kg
